100AWDP1T2B4M2QE

Active

E-Switch

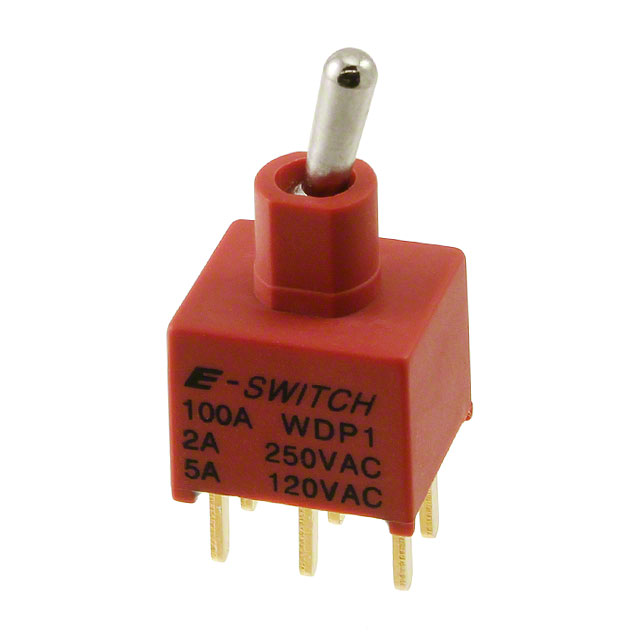

SWITCH: TOGGLE; POS: 2; DPDT; ON-ON; 2A/250VAC; 5A/28VDC; 100A; IP67

Deep-Dive with AI

Search across all available documentation for this part.

100AWDP1T2B4M2QE

Active

E-Switch

SWITCH: TOGGLE; POS: 2; DPDT; ON-ON; 2A/250VAC; 5A/28VDC; 100A; IP67

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	100AWDP1T2B4M2QE

Actuator Length [x]	7.62 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	DPDT
Current Rating (Amps)	5 A
Electrical Life	30000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

100AWDP1 Series

Part	Termination Style	Illumination	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Bushing Thread	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Voltage Rating - AC	Actuator Type	Switch Function	Actuator Length [z]	Features	Electrical Life	Ingress Protection	Circuit	Actuator Material	Actuator Length [x]	Mounting Type
E-Switch 100AWDP1T1B1M2QEH	PC Pin	Non-Illuminated	0.25 in	5 A	1/4-40	-30 ░C	85 °C	28 V	120 V	Standard Round	On-On	10.53 mm	Epoxy Sealed Terminals	30000 Cycles	IP67 - Dust Tight Waterproof	DPDT	Brass Chrome Plated
E-Switch 100AWDP1T1B4M6QE	PC Pin	Non-Illuminated		5 A	Unthreaded	-30 ░C	85 °C	28 V	120 V	Standard Round	On-On		Epoxy Sealed Terminals	30000 Cycles	IP67 - Dust Tight Waterproof	DPDT	Brass Chrome Plated	0.5 in	Through Hole Right Angle
E-Switch 100AWDP1T1B1M1QEH	Solder Lug	Non-Illuminated	0.25 in	5 A	1/4-40	-30 ░C	85 °C	28 V	120 V	Standard Round	On-On		Epoxy Sealed Terminals	30000 Cycles	IP67 - Dust Tight Waterproof	DPDT	Brass Chrome Plated	10.55 mm
E-Switch 100AWDP1T2B4M2QE	PC Pin	Non-Illuminated		5 A	Unthreaded	-30 ░C	85 °C	28 V	120 V	Standard Round	On-On		Epoxy Sealed Terminals	30000 Cycles	IP67 - Dust Tight Waterproof	DPDT	Brass Chrome Plated	7.62 mm	Through Hole
E-Switch 100AWDP1T1B4VS21QE	PC Pin	Non-Illuminated		5 A	Unthreaded	-30 ░C	85 °C	28 V	120 V	Standard Round	On-On		Epoxy Sealed Terminals	30000 Cycles	IP67 - Dust Tight Waterproof	DPDT	Brass Chrome Plated	0.5 in	Through Hole
E-Switch 100AWDP1T1B4M1QE	Solder Lug	Non-Illuminated		5 A	Unthreaded	-30 ░C	85 °C	28 V	120 V	Standard Round	On-On		Epoxy Sealed Terminals	30000 Cycles	IP67 - Dust Tight Waterproof	DPDT	Brass Chrome Plated	0.5 in
E-Switch 100AWDP1T1B1M2REH	PC Pin	Non-Illuminated	0.25 in	0.4 VA	1/4-40	-30 ░C	85 °C	20 V	20 V	Standard Round	On-On		Epoxy Sealed Terminals	30000 Cycles	IP67 - Dust Tight Waterproof	DPDT	Brass Chrome Plated	10.41 mm
E-Switch 100AWSP3T1B4M2RE	PC Pin	Non-Illuminated		0.4 VA	Unthreaded	-30 ░C	85 °C	20 V	20 V	Standard Round	On-Off-On		Epoxy Sealed Terminals	30000 Cycles	IP67 - Dust Tight Waterproof	SPDT	Brass Chrome Plated	0.5 in	Through Hole
E-Switch 100AWDP1T2B4M6RE	PC Pin	Non-Illuminated		0.4 VA	Unthreaded	-30 ░C	85 °C	20 V	20 V	Standard Round	On-On		Epoxy Sealed Terminals	30000 Cycles	IP67 - Dust Tight Waterproof	DPDT	Brass Chrome Plated	7.62 mm	Through Hole Right Angle
E-Switch 100AWDP1T2B4M2RE	PC Pin	Non-Illuminated		0.4 VA	Unthreaded	-30 ░C	85 °C	20 V	20 V	Standard Round	On-On		Epoxy Sealed Terminals	30000 Cycles	IP67 - Dust Tight Waterproof	DPDT	Brass Chrome Plated	7.62 mm	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.20
		10	$ 3.75
		25	$ 3.56
		50	$ 3.43
		100	$ 3.25
		250	$ 3.11
		540	$ 2.86
		1080	$ 2.73
TME	N/A	540	$ 5.75

Description

General part information

100AWDP1 Series

Toggle Switch DPDT Through Hole
