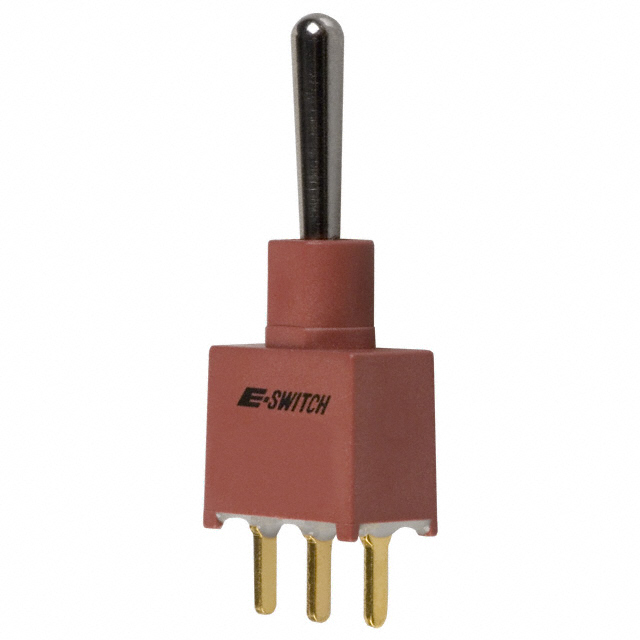

100AWSP3T1B4M2RE

Active

E-Switch

SWITCH: TOGGLE; POS: 3; SP3T; ON-OFF-ON; 0.02A/20VAC; 0.02A/20VDC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	100AWSP3T1B4M2RE

Actuator Length [x]	0.5 in
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	30000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Off-On
Termination Style	PC Pin
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

100AWSP3 Series

Part	Actuator Length [x]	Switch Function	Ingress Protection	Mounting Type	Voltage Rating - AC	Features	Illumination	Voltage Rating - DC	Electrical Life	Circuit	Current Rating (Amps)	Actuator Type	Bushing Thread	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Material	Panel Cutout Dimensions [diameter]
E-Switch 100AWSP3T2B4M7RE	7.62 mm	On-Off-On	IP67 - Dust Tight Waterproof	Right Angle Through Hole Vertical	20 V	Epoxy Sealed Terminals	Non-Illuminated	20 V	30000 Cycles	SPDT	0.4 VA	Standard Round	Unthreaded	PC Pin	-30 ░C	85 °C	Brass Chrome Plated
E-Switch 100AWSP3T2B4M6QE	7.62 mm	On-Off-On	IP67 - Dust Tight Waterproof	Through Hole Right Angle	120 V	Epoxy Sealed Terminals	Non-Illuminated	28 V	30000 Cycles	SPDT	5 A	Standard Round	Unthreaded	PC Pin	-30 ░C	85 °C	Brass Chrome Plated
E-Switch 100AWSP3T2B1M2RE	5.08 mm	On-Off-On	IP67 - Dust Tight Waterproof		20 V	Epoxy Sealed Terminals	Non-Illuminated	20 V	30000 Cycles	SPDT	0.4 VA	Standard Round	1/4-40	PC Pin	-30 ░C	85 °C	Brass Chrome Plated	0.25 in
E-Switch 100AWSP3T1B4M6QE	0.5 in	On-Off-On	IP67 - Dust Tight Waterproof	Through Hole Right Angle	120 V	Epoxy Sealed Terminals	Non-Illuminated	28 V	30000 Cycles	SPDT	5 A	Standard Round	Unthreaded	PC Pin	-30 ░C	85 °C	Brass Chrome Plated
E-Switch 100AWSP3T1B4M2QE	0.5 in	On-Off-On	IP67 - Dust Tight Waterproof	Through Hole	120 V	Epoxy Sealed Terminals	Non-Illuminated	28 V	30000 Cycles	SPDT	5 A	Standard Round	Unthreaded	PC Pin	-30 ░C	85 °C	Brass Chrome Plated
E-Switch 100AWSP3T1B4M2RE	0.5 in	On-Off-On	IP67 - Dust Tight Waterproof	Through Hole	20 V	Epoxy Sealed Terminals	Non-Illuminated	20 V	30000 Cycles	SPDT	0.4 VA	Standard Round	Unthreaded	PC Pin	-30 ░C	85 °C	Brass Chrome Plated
