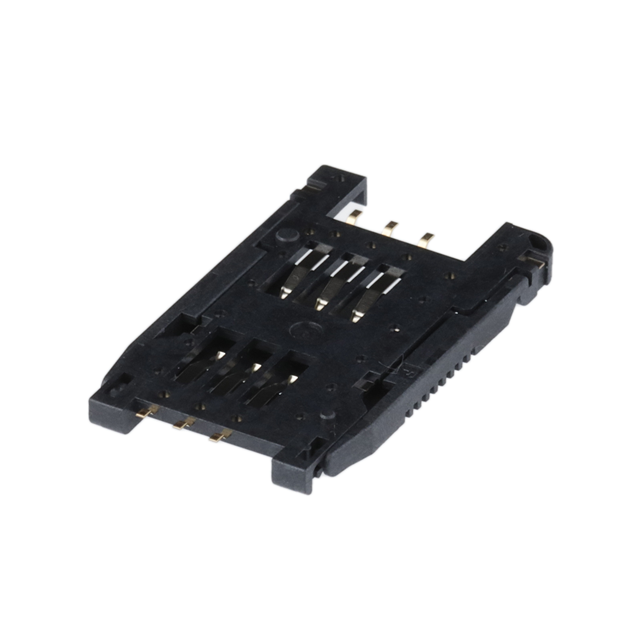

SF7W006S1AR1000
ActiveJAE Electronics
CONN SIM/SAM CARD HINGED TYPE
Deep-Dive with AI
Search across all available documentation for this part.
SF7W006S1AR1000
ActiveJAE Electronics
CONN SIM/SAM CARD HINGED TYPE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SF7W006S1AR1000 |
|---|---|
| Card Type | SIM Card |
| Connector Type | Connector and Ejector |
| Contact Finish | Gold |
| Height Above Board [z] | 0.091 in |
| Height Above Board [z] | 2.3 mm |
| Insertion, Removal Method | Hinged Lid |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.22 | |
| 10 | $ 2.92 | |||
| 25 | $ 2.77 | |||
| 50 | $ 2.70 | |||
| 100 | $ 2.57 | |||
| 250 | $ 2.25 | |||
| 500 | $ 2.19 | |||
| Digi-Reel® | 1 | $ 3.22 | ||
| 10 | $ 2.92 | |||
| 25 | $ 2.77 | |||
| 50 | $ 2.70 | |||
| 100 | $ 2.57 | |||
| 250 | $ 2.25 | |||
| 500 | $ 2.19 | |||
| Tape & Reel (TR) | 1000 | $ 1.87 | ||
| 2000 | $ 1.80 | |||
| 3000 | $ 1.74 | |||
| 5000 | $ 1.67 | |||
Description
General part information
SF7W006 Series
6 Position Card Connector SIM Card Surface Mount, Right Angle Gold
