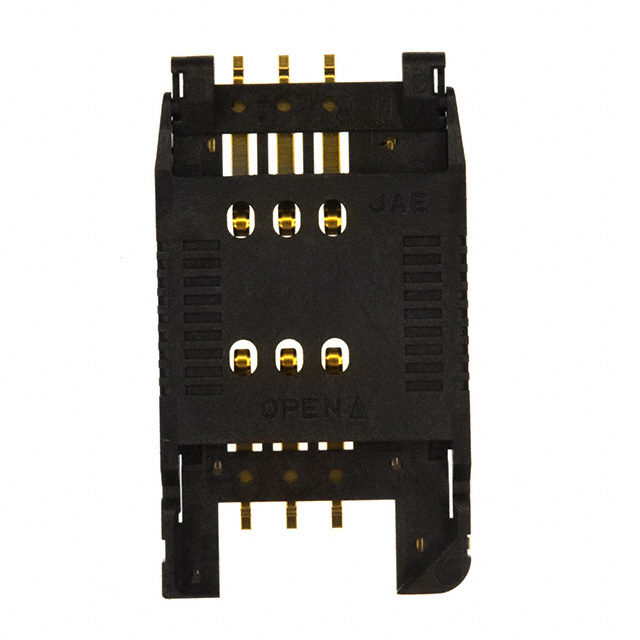

SF7W006S1AE1000

Obsolete

JAE Electronics

CONN SIM/SAM CARD HINGED TYPE

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN SIM/SAM CARD HINGED TYPE

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Height Above Board [z]	Height Above Board [z]	Mounting Feature	Card Type	Contact Finish	Connector Type	Mounting Type	Insertion, Removal Method	Features	Height Above Board	Height Above Board	Contact Finish Thickness
JAE Electronics SF7W006S1AR1000	6	0.091 in	2.3 mm	Normal Standard - Top	SIM Card	Gold	Connector and Ejector	Surface Mount Right Angle	Hinged Lid
JAE Electronics SF7W006S1AE1000	6	0.091 in	2.3 mm	Normal Standard - Top	SAM Card SIM	Gold	Connector and Ejector	Surface Mount Right Angle	Hinged Lid	Board Guide
JAE Electronics SF7W006S1BE1000	6	0.091 in	2.3 mm	Normal Standard - Top	SIM Card	Gold	Connector and Ejector	Surface Mount Right Angle	Hinged Lid
JAE Electronics SF7W006S1BR1000	6	0.091 in	2.3 mm	Normal Standard - Top	SIM Card	Gold	Connector and Ejector	Surface Mount Right Angle	Hinged Lid
JAE Electronics SF7W006S1A	6			Normal Standard - Top	SAM Card SIM	Gold	Connector and Ejector	Surface Mount Right Angle	Hinged Lid	Board Guide	0.089 in	2.26 mm	Flash
JAE Electronics SF7W006S1BR1100	6	0.091 in	2.3 mm	Normal Standard - Top	CompactFlash®	Gold	Connector and Ejector	Surface Mount Right Angle	Hinged Lid
JAE Electronics SF7W006S1BE1100	6	0.091 in	2.3 mm	Normal Standard - Top	SIM Card	Gold	Connector and Ejector	Surface Mount Right Angle	Hinged Lid
