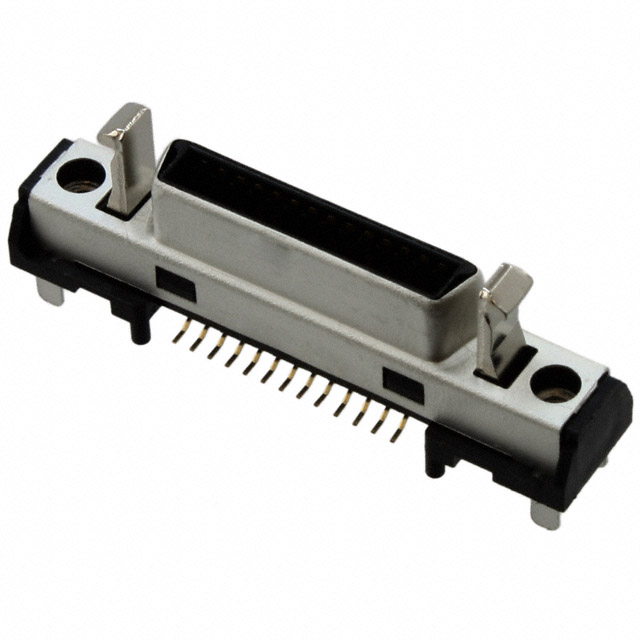

DH80A-27P

Active

Hirose Electric USA, Inc.

CONN SCSI RCPT 27POS SMD SOLDER

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN SCSI RCPT 27POS SMD SOLDER

Technical Specifications

Parameters and characteristics for this part

Part	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Type	Features	Contact Finish	Connector Type	Number of Positions	Connector Style	Termination	Mounting Type	Length - Below Head	Length - Below Head	For Use With/Related Products	Thread Size	Accessory Type	Flange Feature
Hirose Electric USA, Inc. DH80A-37P	2	7.87 µin	0.2 µm	Housing/Shell Latchblocks	SCSI	Board Guide Shielded	Gold	Plug	37	Center Strip Contacts	Solder	Surface Mount
Hirose Electric USA, Inc. DH80A-SCREW													5 mm	0.197 in	D-Sub Connectors PCB Mounted	M2	Board Lock Screw (Slotted)
Hirose Electric USA, Inc. DH80A-27P	2			Housing/Shell	SCSI	Board Guide Shielded	Gold	Receptacle	27	Outer Shroud Contacts	Solder	Surface Mount						2.6 M
Hirose Electric USA, Inc. DH80-27P-LNA	2					Board Guide	Gold	Receptacle	27	Outer Shroud Contacts	Solder	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

27 Position Receptacle Connector SCSI Surface Mount Solder
