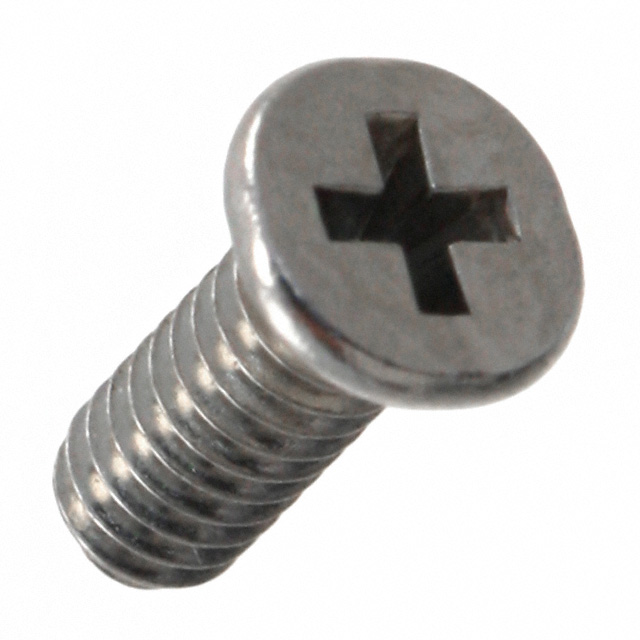

DH80A-SCREW

Active

Hirose Electric USA, Inc.

INSTALL SCREW FOR DH80A RCPTS

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

INSTALL SCREW FOR DH80A RCPTS

Technical Specifications

Parameters and characteristics for this part

Specification	DH80A-SCREW

Accessory Type	Board Lock Screw (Slotted)
For Use With/Related Products	D-Sub Connectors, PCB Mounted
Length - Below Head	5 mm
Length - Below Head	0.197 in
Thread Size	M2

Part	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Type	Features	Contact Finish	Connector Type	Number of Positions	Connector Style	Termination	Mounting Type	Length - Below Head	Length - Below Head	For Use With/Related Products	Thread Size	Accessory Type	Flange Feature
Hirose Electric USA, Inc. DH80A-37P	2	7.87 µin	0.2 µm	Housing/Shell Latchblocks	SCSI	Board Guide Shielded	Gold	Plug	37	Center Strip Contacts	Solder	Surface Mount
Hirose Electric USA, Inc. DH80A-SCREW													5 mm	0.197 in	D-Sub Connectors PCB Mounted	M2	Board Lock Screw (Slotted)
Hirose Electric USA, Inc. DH80A-27P	2			Housing/Shell	SCSI	Board Guide Shielded	Gold	Receptacle	27	Outer Shroud Contacts	Solder	Surface Mount						2.6 M
Hirose Electric USA, Inc. DH80-27P-LNA	2					Board Guide	Gold	Receptacle	27	Outer Shroud Contacts	Solder	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	200	$ 0.12

General part information

Board Lock Screw (Slotted) For D-Sub Connectors, PCB Mounted
