SM1204BC-R/G

Active

Bivar Inc.

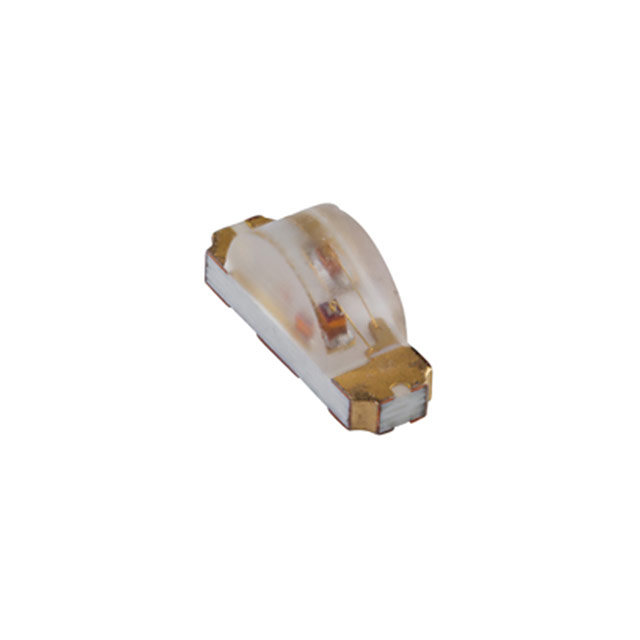

LED, SMD, 1204, BI-COLOR, RED / GREEN, (645NM / 575NM), (115MCD / 72MCD), WATER CLEAR LENS, 130 DEG VIEWING ANGLE / REEL

Search across all available documentation for this part.

Active

Bivar Inc.

LED, SMD, 1204, BI-COLOR, RED / GREEN, (645NM / 575NM), (115MCD / 72MCD), WATER CLEAR LENS, 130 DEG VIEWING ANGLE / REEL

Technical Specifications

Parameters and characteristics for this part

Specification	SM1204BC-R/G

Color	Red, Green
Configuration	Common Anode
Current - Test	20 mA, 20 mA
Height (Max) [Max] [z]	1 mm
Lens Color	Colorless
Lens Size [x]	2 mm
Lens Size [y]	1 mm
Lens Style	Rectangle with Domed Top
Lens Transparency	Clear
Millicandela Rating	72 mcd, 115 mcd
Mounting Type	Surface Mount, Right Angle
Package / Case	2-SMD, No Lead
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	1.5 mm
Supplier Device Package	1204
Viewing Angle	130 °
Voltage - Forward (Vf) (Typ) [custom]	2.2 V
Voltage - Forward (Vf) (Typ) [custom]	2.1 V
Wavelength - Dominant	574 nm, 631 nm
Wavelength - Peak	645 nm, 575 nm

Part	Lens Size [x]	Lens Size [y]	Lens Transparency	Mounting Type	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Height (Max) [Max] [z]	Lens Style	Configuration	Supplier Device Package	Current - Test	Color	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle	Wavelength - Dominant	Lens Color	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Wavelength - Peak
Bivar Inc. SM1204UWC	2 mm	1 mm	Diffused	Surface Mount Right Angle	3.3 V	450 mcd	1 mm	Rectangle with Domed Top	Standard	1204	20 mA	White	3210 Metric	1204	3.2 mm	1 mm	110 °
Bivar Inc. SM1204BC-R/G	2 mm	1 mm	Clear	Surface Mount Right Angle		72 mcd 115 mcd	1 mm	Rectangle with Domed Top	Common Anode	1204	20 mA 20 mA	Green Red		2-SMD No Lead	3.2 mm	1.5 mm	130 °	574 nm 631 nm	Colorless	2.2 V	2.1 V	575 nm 645 nm
Bivar Inc. SM1204UYC	2 mm	1 mm	Clear	Surface Mount Right Angle	2.1 V	72 mcd	1 mm	Rectangle with Domed Top	Standard	1204	20 mA	Yellow	3210 Metric	1204	3.2 mm	1 mm	110 °	592 nm	Colorless			593 nm
Bivar Inc. SM1204PGC	2 mm	1 mm	Clear	Surface Mount Right Angle	3.3 V	360 mcd	1 mm	Rectangle with Domed Top	Standard	1204	20 mA	Green	3210 Metric	1204	3.2 mm	1 mm	110 °	505 nm	Colorless			500 nm
Bivar Inc. SM1204SGC	2 mm	1 mm	Clear	Surface Mount Right Angle	2.1 V	50 mcd	1 mm	Rectangle with Domed Top	Standard	1204	20 mA	Green	3210 Metric	1204	3.2 mm	1 mm	110 °	574 nm	Colorless			575 nm
Bivar Inc. SM1204UPGC	2 mm	1 mm	Clear	Surface Mount Right Angle	3.3 V	285 mcd	1 mm	Rectangle with Domed Top	Standard	1204	20 mA	Green	3210 Metric	1204	3.2 mm	1 mm	110 °	515 nm	Colorless			510 nm
