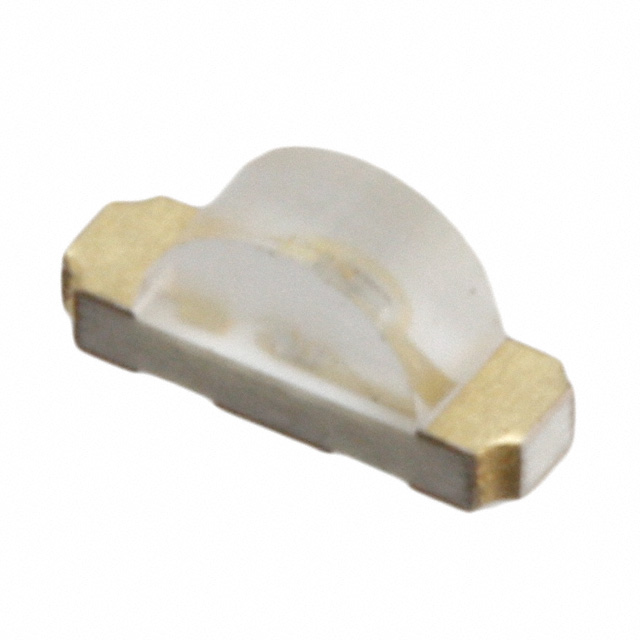

SM1204PGC

Active

Bivar Inc.

LED, GREEN, SMD, 20 MA, 3.3 V, 505 NM

Search across all available documentation for this part.

Active

Bivar Inc.

LED, GREEN, SMD, 20 MA, 3.3 V, 505 NM

Technical Specifications

Parameters and characteristics for this part

Part	Lens Size [x]	Lens Size [y]	Lens Transparency	Mounting Type	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Height (Max) [Max] [z]	Lens Style	Configuration	Supplier Device Package	Current - Test	Color	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle	Wavelength - Dominant	Lens Color	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Wavelength - Peak
Bivar Inc. SM1204UWC	2 mm	1 mm	Diffused	Surface Mount Right Angle	3.3 V	450 mcd	1 mm	Rectangle with Domed Top	Standard	1204	20 mA	White	3210 Metric	1204	3.2 mm	1 mm	110 °
Bivar Inc. SM1204BC-R/G	2 mm	1 mm	Clear	Surface Mount Right Angle		72 mcd 115 mcd	1 mm	Rectangle with Domed Top	Common Anode	1204	20 mA 20 mA	Green Red		2-SMD No Lead	3.2 mm	1.5 mm	130 °	574 nm 631 nm	Colorless	2.2 V	2.1 V	575 nm 645 nm
Bivar Inc. SM1204UYC	2 mm	1 mm	Clear	Surface Mount Right Angle	2.1 V	72 mcd	1 mm	Rectangle with Domed Top	Standard	1204	20 mA	Yellow	3210 Metric	1204	3.2 mm	1 mm	110 °	592 nm	Colorless			593 nm
Bivar Inc. SM1204PGC	2 mm	1 mm	Clear	Surface Mount Right Angle	3.3 V	360 mcd	1 mm	Rectangle with Domed Top	Standard	1204	20 mA	Green	3210 Metric	1204	3.2 mm	1 mm	110 °	505 nm	Colorless			500 nm
Bivar Inc. SM1204SGC	2 mm	1 mm	Clear	Surface Mount Right Angle	2.1 V	50 mcd	1 mm	Rectangle with Domed Top	Standard	1204	20 mA	Green	3210 Metric	1204	3.2 mm	1 mm	110 °	574 nm	Colorless			575 nm
Bivar Inc. SM1204UPGC	2 mm	1 mm	Clear	Surface Mount Right Angle	3.3 V	285 mcd	1 mm	Rectangle with Domed Top	Standard	1204	20 mA	Green	3210 Metric	1204	3.2 mm	1 mm	110 °	515 nm	Colorless			510 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Green 505nm LED Indication - Discrete 3.3V 1204 (3210 Metric)
