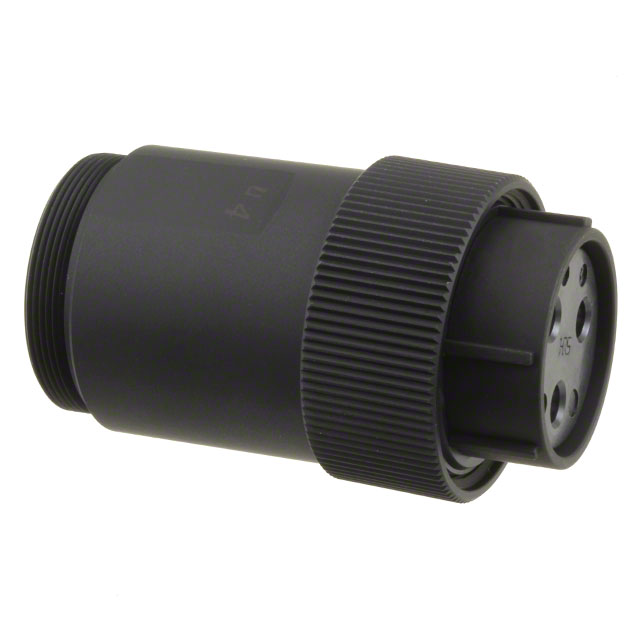

JR25WP-3S(71)
ActiveHirose Electric USA, Inc.
CONN PLUG FMALE 3P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
JR25WP-3S(71)
ActiveHirose Electric USA, Inc.
CONN PLUG FMALE 3P SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | JR25WP-3S(71) |
|---|---|
| Applications | Telecommunications, Industrial, Automotive |
| Backshell Material, Plating | Black Chrome, Brass |
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver |
| Contact Finish Thickness - Mating | 78.7 µin |
| Contact Finish Thickness - Mating | 2 µm |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 15 A |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Black Chromium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 25 |
| Voltage Rating | 300 VAC, 420 VDC |
JR25WP Series
| Part | Contact Material | Applications | Mounting Type | Backshell Material, Plating | Shell Size - Insert | Features | Color | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Orientation | Material Flammability Rating | Ingress Protection | Connector Type | Contact Finish - Mating | Shell Finish | Primary Material | Shell Material | Shielding | Insert Material | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | Copper Alloy | Automotive Industrial Telecommunications | Free Hanging (In-Line) | Black Chrome Brass | 25 | Backshell Coupling Nut | Black | -25 °C | 85 °C | 16 | 10 A | 78.7 µin | 2 µm | 100 VAC 140 VDC | Keyed | UL94 V-0 | IP67/IP68 - Dust Tight Waterproof | Female Sockets Plug | Silver | Black Chromium | Metal | Aluminum Alloy | Unshielded | Phenol Formaldehyde (PF) | |
Hirose Electric USA, Inc. | |||||||||||||||||||||||||
Hirose Electric USA, Inc. | Phosphor Bronze | Automotive Industrial Telecommunications | Free Hanging (In-Line) | Black Chrome Brass | 25 | Backshell Coupling Nut | Black | -25 °C | 85 °C | 15 A | 78.7 µin | 2 µm | 300 VAC 420 VDC | Keyed | UL94 V-0 | IP67/IP68 - Dust Tight Waterproof | Female Sockets Plug | Silver | Black Chromium | Metal | Aluminum Alloy | Polyphenylene Sulfide (PPS) | |||
Hirose Electric USA, Inc. | |||||||||||||||||||||||||
Hirose Electric USA, Inc. | Copper Alloy | Automotive Industrial Telecommunications | Free Hanging (In-Line) | Black Chrome Brass | 25 | Backshell Coupling Nut | Black | -25 °C | 85 °C | 5 A | 78.7 µin | 2 µm | 100 VAC 140 VDC | Keyed | UL94 V-0 | IP67/IP68 - Dust Tight Waterproof | Female Sockets Plug | Silver | Black Chromium | Metal | Aluminum Alloy | Unshielded | Phenol Formaldehyde (PF) | 24 | |
Hirose Electric USA, Inc. |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 66.46 | |
| 10 | $ 51.56 | |||
| 25 | $ 46.84 | |||
| 50 | $ 43.66 | |||
| 100 | $ 40.78 | |||
| 250 | $ 37.38 | |||
Description
General part information
JR25WP Series
3 Position Circular Connector Plug, Female Sockets Solder Cup
