JR25WP-16S(31)

Obsolete

Hirose Electric USA, Inc.

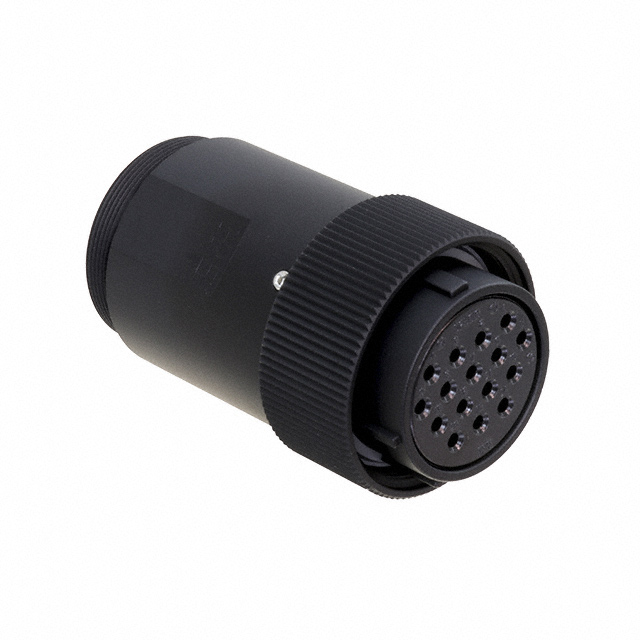

CONN PLUG FMALE 16P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

JR25WP-16S(31)

Obsolete

Hirose Electric USA, Inc.

CONN PLUG FMALE 16P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JR25WP-16S(31)

Applications	Telecommunications, Industrial, Automotive
Backshell Material, Plating	Black Chrome, Brass
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insert Material	Phenol Formaldehyde (PF)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	16
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Black Chromium
Shell Material	Aluminum Alloy
Shell Size - Insert	25
Shielding	Unshielded
Voltage Rating	100 VAC, 140 VDC

JR25WP Series

Part	Contact Material	Applications	Mounting Type	Backshell Material, Plating	Shell Size - Insert	Features	Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Orientation	Material Flammability Rating	Ingress Protection	Connector Type	Contact Finish - Mating	Shell Finish	Primary Material	Shell Material	Shielding	Insert Material	Number of Positions
Hirose Electric USA, Inc. JR25WP-16S(31)	Copper Alloy	Automotive Industrial Telecommunications	Free Hanging (In-Line)	Black Chrome Brass	25	Backshell Coupling Nut	Black	-25 °C	85 °C	16	10 A	78.7 µin	2 µm	100 VAC 140 VDC	Keyed	UL94 V-0	IP67/IP68 - Dust Tight Waterproof	Female Sockets Plug	Silver	Black Chromium	Metal	Aluminum Alloy	Unshielded	Phenol Formaldehyde (PF)
Hirose Electric USA, Inc. JR25WP-4S
Hirose Electric USA, Inc. JR25WP-3S(71)	Phosphor Bronze	Automotive Industrial Telecommunications	Free Hanging (In-Line)	Black Chrome Brass	25	Backshell Coupling Nut	Black	-25 °C	85 °C		15 A	78.7 µin	2 µm	300 VAC 420 VDC	Keyed	UL94 V-0	IP67/IP68 - Dust Tight Waterproof	Female Sockets Plug	Silver	Black Chromium	Metal	Aluminum Alloy		Polyphenylene Sulfide (PPS)
Hirose Electric USA, Inc. JR25WP-24S(73)
Hirose Electric USA, Inc. JR25WP-24S(31)	Copper Alloy	Automotive Industrial Telecommunications	Free Hanging (In-Line)	Black Chrome Brass	25	Backshell Coupling Nut	Black	-25 °C	85 °C		5 A	78.7 µin	2 µm	100 VAC 140 VDC	Keyed	UL94 V-0	IP67/IP68 - Dust Tight Waterproof	Female Sockets Plug	Silver	Black Chromium	Metal	Aluminum Alloy	Unshielded	Phenol Formaldehyde (PF)	24
Hirose Electric USA, Inc. JR25WP-4S(71)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.50

Description

General part information

JR25WP Series

16 Position Circular Connector Plug, Female Sockets Solder Cup
