35RASMT2AHNTRX
ActiveSwitchcraft Inc.

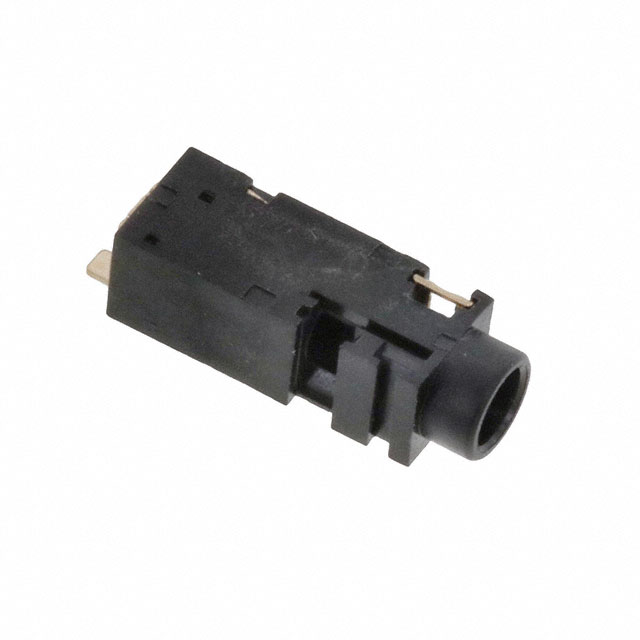

CONN JACK MONO 3.5MM SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
35RASMT2AHNTRX
ActiveSwitchcraft Inc.
CONN JACK MONO 3.5MM SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 35RASMT2AHNTRX |
|---|---|
| Actual Diameter [diameter] | 0.142 in |
| Actual Diameter [diameter] | 3.6 mm |
| Body Color | Black |
| Connector Type | Phone Jack |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 3 A |
| Features | Board Guide |
| Gender | Female |
| Housing Material | Thermoplastic |
| Industry Recognized Mating Diameter | 0.141 " |
| Industry Recognized Mating Diameter | 0.125 " |
| Industry Recognized Mating Diameter | 3.5 mm |
| Internal Switch(s) | Single Switch |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions/Contacts | 3 Conductors, 2 Conductors |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Solder |
| Voltage - Rated | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.38 | |
| 10 | $ 1.81 | |||
| 25 | $ 1.63 | |||
| 50 | $ 1.51 | |||
| 100 | $ 1.40 | |||
| 250 | $ 1.27 | |||
| Digi-Reel® | 1 | $ 2.38 | ||
| 10 | $ 1.81 | |||
| 25 | $ 1.63 | |||
| 50 | $ 1.51 | |||
| 100 | $ 1.40 | |||
| 250 | $ 1.27 | |||
| Tape & Reel (TR) | 700 | $ 1.14 | ||
| 1400 | $ 1.06 | |||
| 2100 | $ 1.02 | |||
| 3500 | $ 0.97 | |||
| 4900 | $ 0.94 | |||
| 7000 | $ 0.91 | |||
Description
General part information
35RASM Series
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Mono Connector Solder
