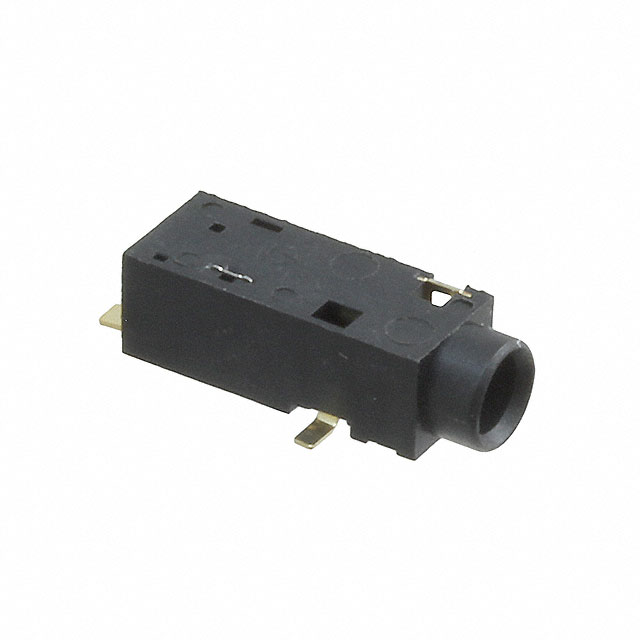

35RASMT3BHNTRX
ActiveSwitchcraft Inc.
CONN JACK STEREO 3.5MM SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
35RASMT3BHNTRX
ActiveSwitchcraft Inc.
CONN JACK STEREO 3.5MM SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 35RASMT3BHNTRX |
|---|---|
| Actual Diameter [diameter] | 0.142 in |
| Actual Diameter [diameter] | 3.6 mm |
| Body Color | Black |
| Connector Type | Phone Jack |
| Contact Material | Copper Alloy |
| Contact Material - Plating [custom] | Silver |
| Current Rating (Amps) | 3 A |
| Features | Board Guide |
| Gender | Female |
| Housing Material | Thermoplastic |
| Industry Recognized Mating Diameter | 0.141 " |
| Industry Recognized Mating Diameter | 0.125 " |
| Industry Recognized Mating Diameter | 3.5 mm |
| Internal Switch(s) | Single Switch |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions/Contacts [custom] | 3 |
| Number of Positions/Contacts [custom] | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Signal Lines | Stereo |
| Termination | Solder |
| Voltage - Rated | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.46 | |
| 10 | $ 1.27 | |||
| 25 | $ 1.21 | |||
| 50 | $ 1.19 | |||
| 100 | $ 1.13 | |||
| 250 | $ 1.03 | |||
| 700 | $ 0.95 | |||
Description
General part information
35RASM Series
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
