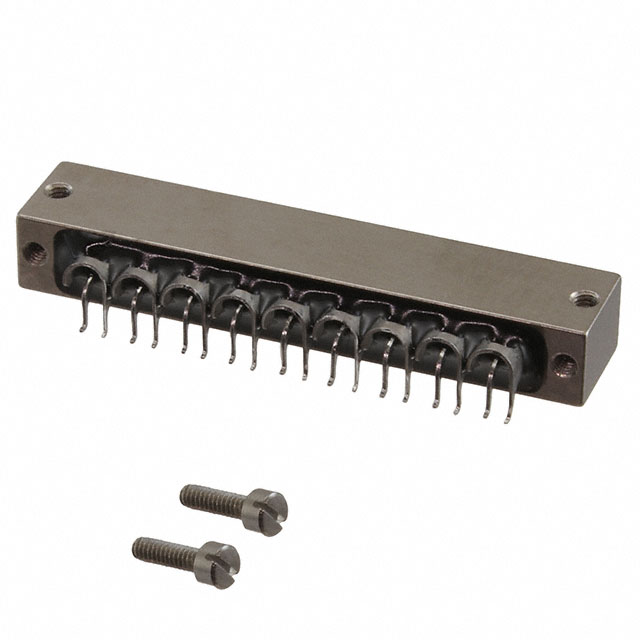

2-1589072-4

Active

TE Connectivity Aerospace, Defense and Marine

CX090L2AQ = COAX

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CX090L2AQ = COAX

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions Loaded	Contact Shape	Termination	Mounting Type	Number of Rows	Contact Material	Insulation Material	Insulation Height	Insulation Height	Connector Type	Pitch - Mating	Pitch - Mating	Number of Positions	Style	Features	Contact Finish - Mating	Contact Finish - Post
TE Connectivity Aerospace, Defense and Marine 1-1589072-2	All	Circular	Solder	Surface Mount Right Angle	1	Brass	Liquid Crystal Polymer (LCP)	0.166 in	4.22 mm	Receptacle	0.1 in	2.54 mm
TE Connectivity Aerospace, Defense and Marine 1589072-1	All	Circular	Solder	Surface Mount Right Angle	1		Liquid Crystal Polymer (LCP)	0.166 in	4.22 mm	Receptacle			1	Board to Cable/Wire	Shielded	Tin-Lead	Tin-Lead
TE Connectivity Aerospace, Defense and Marine 2-1589072-4	All	Circular	Solder	Surface Mount Right Angle	1		Liquid Crystal Polymer (LCP)	0.166 in	4.22 mm	Receptacle			9	Board to Cable/Wire	Shielded	Tin-Lead	Tin-Lead
TE Connectivity Aerospace, Defense and Marine 2-1589072-3	All	Circular	Solder	Surface Mount Right Angle	1		Liquid Crystal Polymer (LCP)	0.166 in	4.22 mm	Receptacle				Board to Cable/Wire	Shielded	Tin-Lead	Tin-Lead

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1332.78

General part information

9 Position Receptacle Connector Surface Mount, Right Angle Tin-Lead

Technical documentation and resources

No documents available
