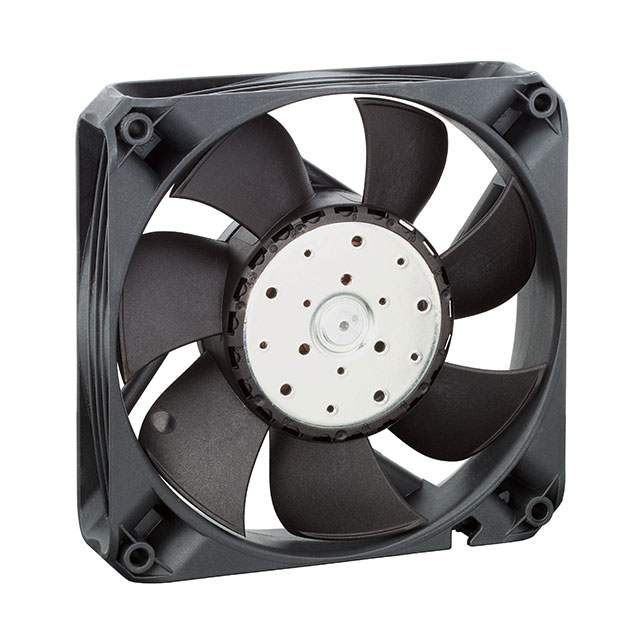

4412FNH

Active

ebm-papst Inc.

DC FAN AXIAL BALL BEARING 12V 9V TO 13.2V 132.4CFM 55DB 119 X 119 X 25.4MM HIGH SPEED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCompact Fans for AC, DC, and EC Catalog Datasheet

4412FNH

Active

ebm-papst Inc.

DC FAN AXIAL BALL BEARING 12V 9V TO 13.2V 132.4CFM 55DB 119 X 119 X 25.4MM HIGH SPEED

Deep-Dive with AI

DocumentsCompact Fans for AC, DC, and EC Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4412FNH

Air Flow	3.71 mł/min
Air Flow	132.5 CFM
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	60000 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	55 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	12 W
RPM	5400 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	9 V
Weight	239.95 g
Weight	0.529 lb
Width [y]	25.4 mm

4412 Series

Part	Termination	Bearing Type	Features	RPM	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Material - Frame	Current Rating (Amps)	Width [y]	Static Pressure	Static Pressure	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Noise	Material - Blade	Weight	Weight	Fan Type	Voltage Range [Max]	Voltage Range [Min]	Air Flow	Air Flow	Approval Agency	Power (Watts)	Ingress Protection	Operating Temperature [Max]	Lifetime @ Temp.
ebm-papst Inc. 4412/2H	3 Wire Leads	Ball	Auto Restart Locked Rotor Protection Speed Sensor (Tach)	4300 RPM	12 VDC	119 mm	119 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.72 A	38 mm	0.64 in H2O	160 Pa	57500 Hrs	-20 °C	70 °C	-20 C	70 °C	50 dB(A)	Fiberglass Reinforced Nylon Polyamide (PA)	0.604 lb	273.97 g	Tubeaxial	14 V	7 V	3.95 m³/min	141 CFM
ebm-papst Inc. 4412FGM	2 Wire Leads	Sintec		2400 RPM	12 VDC	119 mm	119 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		25.4 mm			70000 Hrs	-20 °C	70 °C	-20 C	70 °C	38 dB(A)	Fiberglass Reinforced Nylon Polyamide (PA)	0.386 lb	175.09 g	Tubeaxial	12.6 VDC	7 V	2.31 m³/min	82.4 CFM	CE CSA UL VDE	3.2 W
ebm-papst Inc. 4412ML	2 Wire Leads	Ball		3000 RPM	12 VDC	119 mm	119 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		38 mm			40 °C 67500 Hrs	-20 °C		-20 C	80 C	46 dB(A)	Fiberglass Reinforced Nylon Polyamide (PA)	0.604 lb	273.97 g	Tubeaxial	15 V	7 V				3 W	IP54 - Dust Protected Water Resistant	80 °C
ebm-papst Inc. 4412F/2M	3 Wire Leads	Ball	Speed Sensor (Tach)	2900 RPM	12 VDC	119 mm	119 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		25.4 mm			60000 Hrs	-20 °C	60 °C	-20 C	60 °C	43 dB	Fiberglass Reinforced Nylon Polyamide (PA)	0.386 lb	175.09 g	Tubeaxial	12.6 VDC	8 VDC	2.8 m³/min	100.1 CFM	CE CSA UL VDE	5.3 W
ebm-papst Inc. 4412FNH	2 Wire Leads	Ball		5400 RPM	12 VDC	119 mm	119 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		25.4 mm			60000 Hrs	-20 °C	70 °C	-20 C	70 °C	55 dB	Fiberglass Reinforced Nylon Polyamide (PA)	0.529 lb	239.95 g	Tubeaxial	13.2 VDC	9 V	3.71 mł/min	132.5 CFM		12 W
ebm-papst Inc. 4412FMD	2 Wire Leads	Ball			12 VDC	119 mm	119 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		25.4 mm								38 dB(A)	Fiberglass Reinforced Nylon Polyamide (PA)	0.38 lb	172.37 g	Tubeaxial	14 V	7 V	2.3 m³/min	82 CFM	CE CSA UL VDE	3.2 W
ebm-papst Inc. 4412F/39M	3 Wire Leads	Ball		2400 RPM	12 VDC	119 mm	119 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	270 mA	25.4 mm	0.18 in H2O	44.8 Pa		-20 °C	75 °C	-20 C	75 ░C	38 dB(A)	Fiberglass Reinforced Nylon Polyamide (PA)			Tubeaxial	12.6 VDC	7 V	2.8 m³/min	100 CFM	CE CSA EAC UL VDE	3.2 W			Varies Based on Temperature
ebm-papst Inc. 4412M	2 Wire Leads	Ball		3300 RPM	12 VDC	119 mm	119 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		38 mm			65000 Hrs	-20 °C	75 °C	-20 C	75 ░C	42 dB	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.553 lb	250.84 g	Tubeaxial	14 V	7 V	3.02 m³/min	108 CFM		3.8 W
ebm-papst Inc. 4412/12M	3 Wire Leads	Ball	Locked Rotor Protection Speed Sensor (Tach)	3300 RPM	12 VDC	119 mm	119 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		38 mm			65000 Hrs	-20 °C	75 °C	-20 C	75 ░C	42 dB	Fiberglass Reinforced Nylon Polyamide (PA)	0.553 lb	250.84 g	Tubeaxial	14 V	7 V	3.02 m³/min	108 CFM		4.1 W
ebm-papst Inc. 4412F/2	3 Wire Leads	Ball	Speed Sensor (Tach)	2900 RPM	12 VDC	119 mm	119 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		25.4 mm			60000 Hrs	-20 °C	60 °C	-20 C	60 °C	43 dB	Fiberglass Reinforced Nylon Polyamide (PA)	0.386 lb	175.09 g	Tubeaxial	12.6 VDC	8 VDC	2.8 m³/min	100 CFM		5.3 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	2	$ 50.63
Digikey	Box	1	$ 64.73
		10	$ 58.57
		25	$ 54.71
		50	$ 53.94
		100	$ 49.71

Description

General part information

4412 Series

Fan Tubeaxial 12VDC Square - 119mm L x 119mm H Ball 132.5 CFM (3.71m³/min) 2 Wire Leads
