4412FGM

Active

ebm-papst Inc.

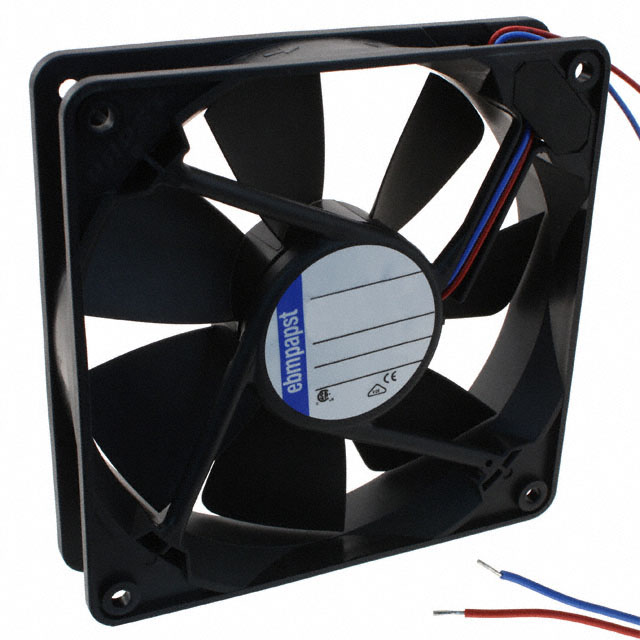

FAN AXIAL 119X25.4MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Tubeaxial Fan Accessories - Quick Reference

4412FGM

Active

ebm-papst Inc.

FAN AXIAL 119X25.4MM 12VDC WIRE

Deep-Dive with AI

DocumentsDatasheet Tubeaxial Fan Accessories - Quick Reference

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4412FGM

Air Flow	82.4 CFM
Air Flow	2.31 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Sintec
Fan Type	Tubeaxial
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	38 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	3.2 W
RPM	2400 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	12.6 VDC
Voltage Range [Min]	7 V
Weight	0.386 lb
Weight	175.09 g
Width [y]	25.4 mm

4412 Series

Part	Termination	Bearing Type	Features	RPM	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Material - Frame	Current Rating (Amps)	Width [y]	Static Pressure	Static Pressure	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Noise	Material - Blade	Weight	Weight	Fan Type	Voltage Range [Max]	Voltage Range [Min]	Air Flow	Air Flow	Approval Agency	Power (Watts)	Ingress Protection	Operating Temperature [Max]	Lifetime @ Temp.
ebm-papst Inc. 4412/2H	3 Wire Leads	Ball	Auto Restart Locked Rotor Protection Speed Sensor (Tach)	4300 RPM	12 VDC	119 mm	119 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.72 A	38 mm	0.64 in H2O	160 Pa	57500 Hrs	-20 °C	70 °C	-20 C	70 °C	50 dB(A)	Fiberglass Reinforced Nylon Polyamide (PA)	0.604 lb	273.97 g	Tubeaxial	14 V	7 V	3.95 m³/min	141 CFM
ebm-papst Inc. 4412FGM	2 Wire Leads	Sintec		2400 RPM	12 VDC	119 mm	119 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		25.4 mm			70000 Hrs	-20 °C	70 °C	-20 C	70 °C	38 dB(A)	Fiberglass Reinforced Nylon Polyamide (PA)	0.386 lb	175.09 g	Tubeaxial	12.6 VDC	7 V	2.31 m³/min	82.4 CFM	CE CSA UL VDE	3.2 W
ebm-papst Inc. 4412ML	2 Wire Leads	Ball		3000 RPM	12 VDC	119 mm	119 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		38 mm			40 °C 67500 Hrs	-20 °C		-20 C	80 C	46 dB(A)	Fiberglass Reinforced Nylon Polyamide (PA)	0.604 lb	273.97 g	Tubeaxial	15 V	7 V				3 W	IP54 - Dust Protected Water Resistant	80 °C
ebm-papst Inc. 4412F/2M	3 Wire Leads	Ball	Speed Sensor (Tach)	2900 RPM	12 VDC	119 mm	119 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		25.4 mm			60000 Hrs	-20 °C	60 °C	-20 C	60 °C	43 dB	Fiberglass Reinforced Nylon Polyamide (PA)	0.386 lb	175.09 g	Tubeaxial	12.6 VDC	8 VDC	2.8 m³/min	100.1 CFM	CE CSA UL VDE	5.3 W
ebm-papst Inc. 4412FNH	2 Wire Leads	Ball		5400 RPM	12 VDC	119 mm	119 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		25.4 mm			60000 Hrs	-20 °C	70 °C	-20 C	70 °C	55 dB	Fiberglass Reinforced Nylon Polyamide (PA)	0.529 lb	239.95 g	Tubeaxial	13.2 VDC	9 V	3.71 mł/min	132.5 CFM		12 W
ebm-papst Inc. 4412FMD	2 Wire Leads	Ball			12 VDC	119 mm	119 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		25.4 mm								38 dB(A)	Fiberglass Reinforced Nylon Polyamide (PA)	0.38 lb	172.37 g	Tubeaxial	14 V	7 V	2.3 m³/min	82 CFM	CE CSA UL VDE	3.2 W
ebm-papst Inc. 4412F/39M	3 Wire Leads	Ball		2400 RPM	12 VDC	119 mm	119 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	270 mA	25.4 mm	0.18 in H2O	44.8 Pa		-20 °C	75 °C	-20 C	75 ░C	38 dB(A)	Fiberglass Reinforced Nylon Polyamide (PA)			Tubeaxial	12.6 VDC	7 V	2.8 m³/min	100 CFM	CE CSA EAC UL VDE	3.2 W			Varies Based on Temperature
ebm-papst Inc. 4412M	2 Wire Leads	Ball		3300 RPM	12 VDC	119 mm	119 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		38 mm			65000 Hrs	-20 °C	75 °C	-20 C	75 ░C	42 dB	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.553 lb	250.84 g	Tubeaxial	14 V	7 V	3.02 m³/min	108 CFM		3.8 W
ebm-papst Inc. 4412/12M	3 Wire Leads	Ball	Locked Rotor Protection Speed Sensor (Tach)	3300 RPM	12 VDC	119 mm	119 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		38 mm			65000 Hrs	-20 °C	75 °C	-20 C	75 ░C	42 dB	Fiberglass Reinforced Nylon Polyamide (PA)	0.553 lb	250.84 g	Tubeaxial	14 V	7 V	3.02 m³/min	108 CFM		4.1 W
ebm-papst Inc. 4412F/2	3 Wire Leads	Ball	Speed Sensor (Tach)	2900 RPM	12 VDC	119 mm	119 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		25.4 mm			60000 Hrs	-20 °C	60 °C	-20 C	60 °C	43 dB	Fiberglass Reinforced Nylon Polyamide (PA)	0.386 lb	175.09 g	Tubeaxial	12.6 VDC	8 VDC	2.8 m³/min	100 CFM		5.3 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 35.73
		10	$ 32.63
		30	$ 31.39
		50	$ 29.33
		100	$ 27.06
		250	$ 26.64

Description

General part information

4412 Series

Fan Tubeaxial 12VDC Square - 119mm L x 119mm H Sintec 82.4 CFM (2.31mł/min) 2 Wire Leads
