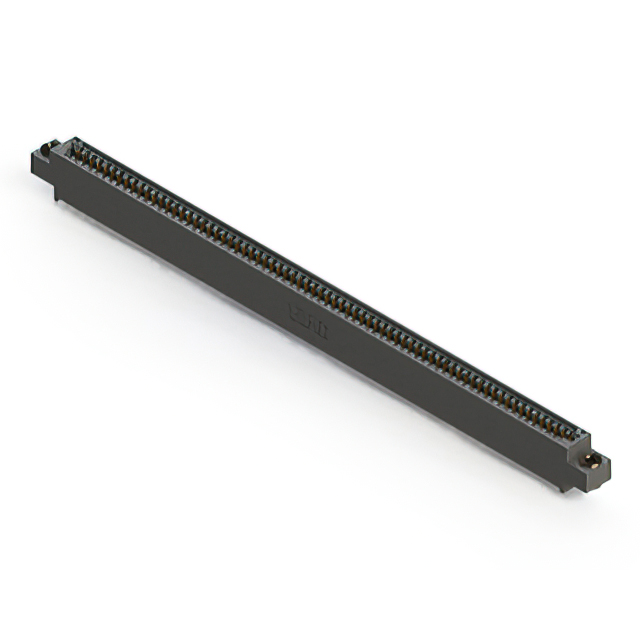

895-072-521-603

Active

EDAC Inc.

CONN EDGE SINGLE FML 72POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

895-072-521-603

Active

EDAC Inc.

CONN EDGE SINGLE FML 72POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	895-072-521-603

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Floating Bobbin
Flange Feature [diameter]	2.95 mm
Flange Feature [diameter]	0.116 in
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	72
Number of Positions/Bay/Row [custom]	72
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

895-072 Series

...

Part	Contact Material	Number of Positions/Bay/Row [custom]	Contact Type	Pitch [x]	Pitch [x]	Gender	Read Out	Flange Feature	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Rows	Color	Termination Rows	Contact Finish	Material - Insulation	Card Type	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination	Number of Positions/Bay/Row [custom]	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature	Features
EDAC Inc. 895-072-558-408	Copper Alloy	72	Cantilever	2.54 mm	0.1 in	Female	Single	4-40 Threaded Insert Top Mount Opening	72	10 Áin	0.25 Ám	Through Hole Right Angle	1	Black	1	Gold	Polyphenylene Sulfide (PPS)	Non Specified - Single Edge	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder
EDAC Inc. 895-072-544-212	Copper Alloy		Cantilever	2.54 mm	0.1 in	Female	Dual	Flush Mount Side Opening Unthreaded	72	10 Áin	0.25 Ám	Through Hole	2	Black	2	Gold	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Wire Wrap	36	3.25 mm	0.128 "
EDAC Inc. 895-072-521-603	Copper Alloy	72	Cantilever	2.54 mm	0.1 in	Female	Single	Floating Bobbin Top Mount Opening	72	10 Áin	0.25 Ám	Through Hole	1	Black	1	Gold	Polyphenylene Sulfide (PPS)	Non Specified - Single Edge	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder		2.95 mm	0.116 in
EDAC Inc. 895-072-542-212	Copper Alloy		Cantilever	2.54 mm	0.1 in	Female	Dual	Flush Mount Side Opening Unthreaded	72	10 Áin	0.25 Ám	Through Hole	2	Black	2	Gold	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Wire Wrap	36	3.25 mm	0.128 "
EDAC Inc. 895-072-558-412	Copper Alloy	72	Cantilever	2.54 mm	0.1 in	Female	Single	Side Mount Opening Unthreaded	72	10 Áin	0.25 Ám	Through Hole Right Angle	1	Black	1	Gold	Polyphenylene Sulfide (PPS)	Non Specified - Single Edge	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder				3.25 mm	0.128 in
EDAC Inc. 895-072-524-102	Copper Alloy	72	Cantilever	2.54 mm	0.1 in	Female	Single	Flush Mount Top Opening Unthreaded	72	10 Áin	0.25 Ám	Through Hole	1	Black	1	Gold	Polyphenylene Sulfide (PPS)	Non Specified - Single Edge	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder		3.25 mm	0.128 "
EDAC Inc. 895-072-542-512	Copper Alloy		Cantilever	2.54 mm	0.1 in	Female	Dual	Side Mount Opening Unthreaded	72	10 Áin	0.25 Ám	Through Hole	2	Black	2	Gold	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Wire Wrap	36			3.25 mm	0.128 in
EDAC Inc. 895-072-521-612	Copper Alloy	72	Cantilever	2.54 mm	0.1 in	Female	Single	Side Mount Opening Unthreaded	72	10 Áin	0.25 Ám	Through Hole	1	Black	1	Gold	Polyphenylene Sulfide (PPS)	Non Specified - Single Edge	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder				3.25 mm	0.128 in
EDAC Inc. 895-072-559-102	Copper Alloy	72	Cantilever	2.54 mm	0.1 in	Female	Single	Flush Mount Top Opening Unthreaded	72	10 Áin	0.25 Ám	Through Hole Right Angle	1	Black	1	Gold	Polyphenylene Sulfide (PPS)	Non Specified - Single Edge	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder		3.25 mm	0.128 "
EDAC Inc. 895-072-560-502	Copper Alloy		Cantilever	2.54 mm	0.1 in	Female	Dual		72	10 Áin	0.25 Ám	Board Edge Straddle Mount	2	Black	2	Gold	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	36			3.25 mm	0.128 in	Card Extender

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 165.97
Newark	Each	1	$ 222.95
		100	$ 113.73
		250	$ 97.64
		500	$ 89.32
		1000	$ 77.88

Description

General part information

895-072 Series

72 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
