895-072-521-612
ActiveEDAC Inc.

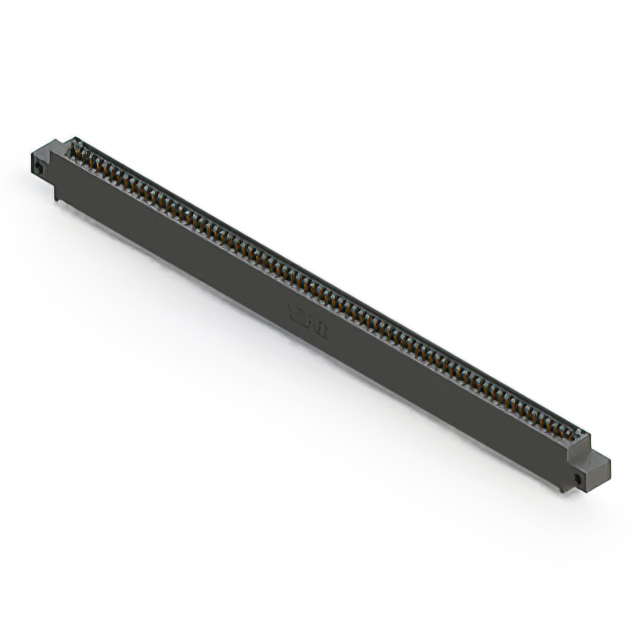

CONN EDGE SINGLE FML 72POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
895-072-521-612
ActiveEDAC Inc.
CONN EDGE SINGLE FML 72POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 895-072-521-612 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Side Mount Opening, Unthreaded |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 72 |
| Number of Positions/Bay/Row [custom] | 72 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
895-072 Series
...
| Part | Contact Material | Number of Positions/Bay/Row [custom] | Contact Type | Pitch [x] | Pitch [x] | Gender | Read Out | Flange Feature | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Number of Rows | Color | Termination Rows | Contact Finish | Material - Insulation | Card Type | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | 72 | Cantilever | 2.54 mm | 0.1 in | Female | Single | 4-40 Threaded Insert Top Mount Opening | 72 | 10 Áin | 0.25 Ám | Through Hole Right Angle | 1 | Black | 1 | Gold | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | ||||||
EDAC Inc. | Copper Alloy | Cantilever | 2.54 mm | 0.1 in | Female | Dual | Flush Mount Side Opening Unthreaded | 72 | 10 Áin | 0.25 Ám | Through Hole | 2 | Black | 2 | Gold | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 36 | 3.25 mm | 0.128 " | ||||
EDAC Inc. | Copper Alloy | 72 | Cantilever | 2.54 mm | 0.1 in | Female | Single | Floating Bobbin Top Mount Opening | 72 | 10 Áin | 0.25 Ám | Through Hole | 1 | Black | 1 | Gold | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 2.95 mm | 0.116 in | ||||
EDAC Inc. | Copper Alloy | Cantilever | 2.54 mm | 0.1 in | Female | Dual | Flush Mount Side Opening Unthreaded | 72 | 10 Áin | 0.25 Ám | Through Hole | 2 | Black | 2 | Gold | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 36 | 3.25 mm | 0.128 " | ||||
EDAC Inc. | Copper Alloy | 72 | Cantilever | 2.54 mm | 0.1 in | Female | Single | Side Mount Opening Unthreaded | 72 | 10 Áin | 0.25 Ám | Through Hole Right Angle | 1 | Black | 1 | Gold | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Copper Alloy | 72 | Cantilever | 2.54 mm | 0.1 in | Female | Single | Flush Mount Top Opening Unthreaded | 72 | 10 Áin | 0.25 Ám | Through Hole | 1 | Black | 1 | Gold | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 3.25 mm | 0.128 " | ||||
EDAC Inc. | Copper Alloy | Cantilever | 2.54 mm | 0.1 in | Female | Dual | Side Mount Opening Unthreaded | 72 | 10 Áin | 0.25 Ám | Through Hole | 2 | Black | 2 | Gold | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 36 | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Copper Alloy | 72 | Cantilever | 2.54 mm | 0.1 in | Female | Single | Side Mount Opening Unthreaded | 72 | 10 Áin | 0.25 Ám | Through Hole | 1 | Black | 1 | Gold | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Copper Alloy | 72 | Cantilever | 2.54 mm | 0.1 in | Female | Single | Flush Mount Top Opening Unthreaded | 72 | 10 Áin | 0.25 Ám | Through Hole Right Angle | 1 | Black | 1 | Gold | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 3.25 mm | 0.128 " | ||||
EDAC Inc. | Copper Alloy | Cantilever | 2.54 mm | 0.1 in | Female | Dual | 72 | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | 2 | Black | 2 | Gold | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 36 | 3.25 mm | 0.128 in | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 160.89 | |
Description
General part information
895-072 Series
72 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
