19200030620
ActiveHARTING Technology Group

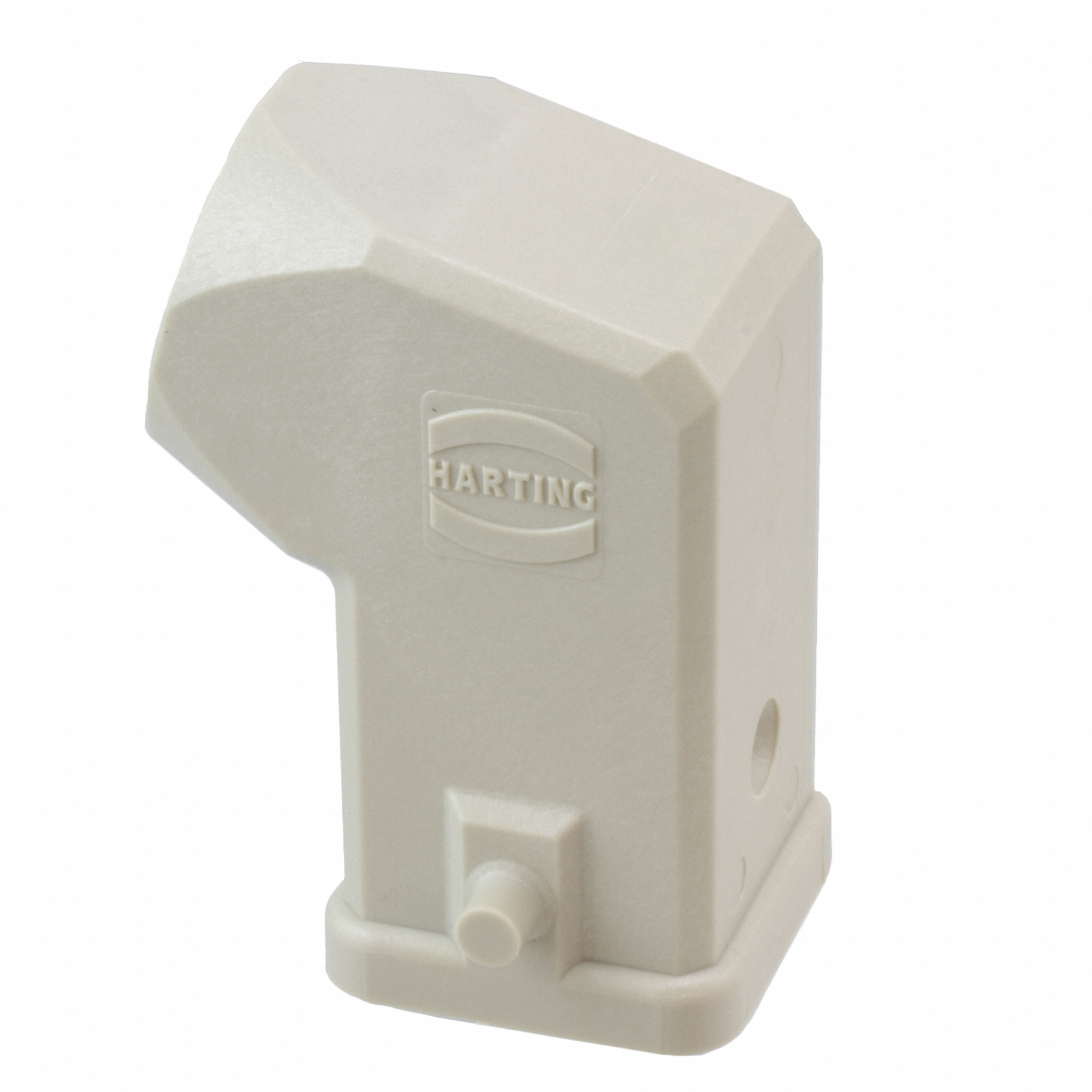

HEAVY DUTY CONNECTOR, HOOD, SIDE ENTRY, PC (POLYCARBONATE) BODY, 1 LEVER, 3A
Deep-Dive with AI
Search across all available documentation for this part.
19200030620
ActiveHARTING Technology Group
HEAVY DUTY CONNECTOR, HOOD, SIDE ENTRY, PC (POLYCARBONATE) BODY, 1 LEVER, 3A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 19200030620 |
|---|---|
| Connector Type | Hood |
| Housing Color | Gray |
| Housing Material | Polycarbonate (PC) |
| Ingress Protection | IP44 |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 3 A |
| Size / Dimension [x] | 26.5 mm |
| Size / Dimension [x] | 1.043 in |
| Size / Dimension [y] | 26.5 mm |
| Size / Dimension [y] | 1.043 " |
| Size / Dimension [z] | 54.6 mm |
| Size / Dimension [z] | 2.15 in |
| Style | Side Entry |
| Thread Size | M20 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.39 | |
| 10 | $ 6.70 | |||
| 25 | $ 5.94 | |||
| 50 | $ 5.45 | |||
| 100 | $ 5.02 | |||
| 250 | $ 4.53 | |||
| 500 | $ 4.22 | |||
| 1000 | $ 3.94 | |||
| 2500 | $ 3.63 | |||
Description
General part information
19200030 Series
Hood Connector Side Entry M20 3A IP44
