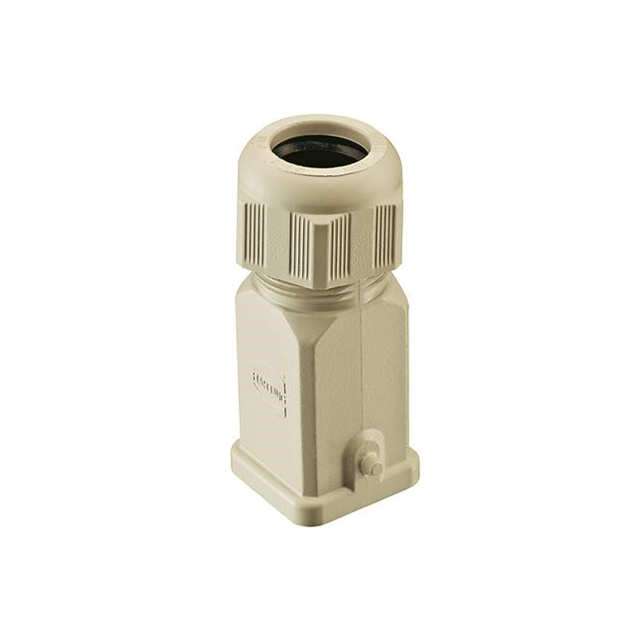

19200030415

Active

HARTING Technology Group

3A GRAY PLASTIC HOOD TOP ENTRY, W/ GLAND 7 12MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 19200030415 Prod Declaration Cert

19200030415

Active

HARTING Technology Group

3A GRAY PLASTIC HOOD TOP ENTRY, W/ GLAND 7 12MM

Deep-Dive with AI

DocumentsDatasheet 19200030415 Prod Declaration Cert

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	19200030415

Connector Type	Hood
Housing Color	Gray
Housing Material	Polycarbonate (PC)
Ingress Protection	IP44
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	3 A
Style	Top Entry

19200030 Series

Part	Size	Lock Location	Housing Color	Housing Material	Style	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Thread Size
HARTING Technology Group 19200030415	3 A	Locking Clip (1) on Base Bottom	Gray	Polycarbonate (PC)	Top Entry	Hood	125 °C	-40 °C	IP44
HARTING Technology Group 19200030420	3 A	Locking Clip (1) on Base Bottom	Gray	Polycarbonate (PC)	Top Entry	Hood	125 °C	-40 °C	IP44	26.5 mm	2.362 "	26.5 mm	1.043 "	1.043 in	60 mm	M20
HARTING Technology Group 19200030220	3 A	Locking Clip (1) on Base Bottom	Gray	Polyamide (PA) Nylon	Side Entry	Base - Panel Mount 90°	125 °C	-40 °C	IP44	28 mm	1.055 "	40 mm	1.575 in	1.102 in	26.8 mm	M20
HARTING Technology Group 19200030620	3 A	Locking Clip (1) on Base Bottom	Gray	Polycarbonate (PC)	Side Entry	Hood	125 °C	-40 °C	IP44	26.5 mm	2.15 in	26.5 mm	1.043 "	1.043 in	54.6 mm	M20
HARTING Technology Group 19200030227	3 A	Locking Clip (1) on Base Bottom	Black	Polycarbonate (PC)	Side Entry	Base - Panel Mount 90°	125 °C	-40 °C	IP44	28 mm	1.055 "	40 mm	1.575 in	1.102 in	26.8 mm	M20
HARTING Technology Group 19200030437	3 A	Locking Clip (1) on Base Bottom	Black	Polycarbonate (PC)	Top Entry	Hood	125 °C	-40 °C	IP44							M25
HARTING Technology Group 19200030433	3 A	Locking Clip (1) on Base Bottom	Gray	Polycarbonate (PC)	Top Entry	Hood	125 °C	-40 °C	IP44							M25
HARTING Technology Group 19200030410	3 A	Locking Clip (1) on Base Bottom	Gray	Polycarbonate (PC)	Top Entry	Hood	125 °C	-40 °C	IP44	26.6 mm	2.559 "	26.6 mm	1.047 "	1.047 "	65 mm
HARTING Technology Group 19200030419
HARTING Technology Group 19200030626	3 A	Locking Clip (1) on Base Bottom	Black	Polycarbonate (PC)	Side Entry	Hood	125 °C	-40 °C	IP44	26.5 mm	2.15 in	26.5 mm	1.043 "	1.043 in	54.6 mm	M20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.21
		10	$ 10.29
		25	$ 9.17
		50	$ 8.45
		100	$ 7.82
		250	$ 7.10
		500	$ 6.63
		1000	$ 6.59
Newark	Each	10	$ 11.98
		25	$ 11.64
		50	$ 10.78
		100	$ 10.20
		250	$ 9.34
		500	$ 8.66
		1000	$ 7.97

Description

General part information

19200030 Series

Hood Connector Top Entry 3A IP44

Documents

Technical documentation and resources

Datasheet

19200030415 Prod Declaration Cert

Datasheet
