DCCM100PSBN

Active

Cinch Connectivity Solutions Trompeter

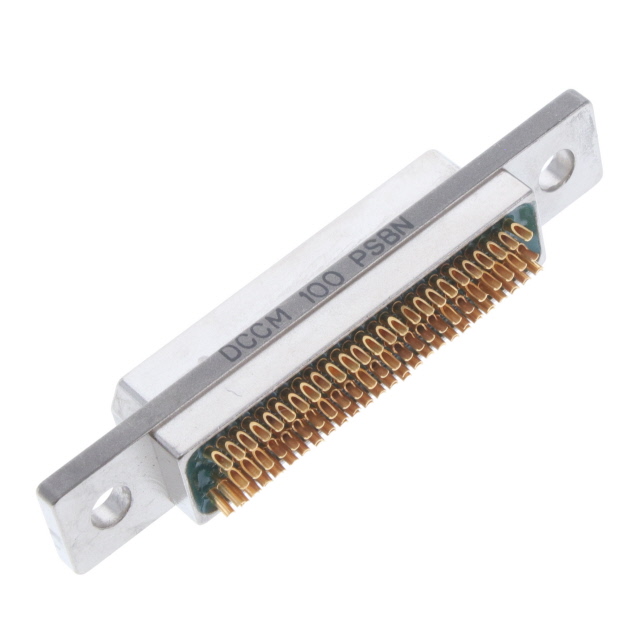

CONN MICRO-D PLUG 100POS PNL MNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DCCM100PSBN

Connector Style	Micro-D, D-Type
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Diallyl Phthalate (DAP), Glass Filled
Features	Shielded
Material Flammability Rating	UL94 V-0
Number of Positions	100
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Aluminum Alloy, Electroless
Shell Size, Connector Layout [custom]	0.043
Shell Size, Connector Layout [custom]	0.05

DCCM100 Series

Part	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Type	Dielectric Material	Connector Style	Termination	Features	Contact Finish	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Backset Spacing	Backset Spacing	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Shell Material, Finish	Material Flammability Rating	Current Rating (Amps)	Mounting Type	Connector Type	Flange Feature
Cinch Connectivity Solutions Trompeter DCCM100SCBRPN	0.043	0.05	Signal	Diallyl Phthalate (DAP) Glass Filled	D-Type Micro-D	Solder	Shielded	Gold	100	50 µin	1.27 µm	5.08 mm	0.2 in	135 °C	-55 °C	Copper Alloy	Aluminum Alloy Electroless Nickel Plated	UL94 V-0	3 A	Through Hole Right Angle	Receptacle Female Sockets	Female Screwlock Mating Side
Cinch Connectivity Solutions Trompeter DCCM100PCBRP	0.043	0.05	Signal	Diallyl Phthalate (DAP) Glass Filled	D-Type Micro-D	Solder	Shielded	Gold	100	50 µin	1.27 µm	5.08 mm	0.2 in	135 °C	-55 °C	Copper Alloy	Aluminum Alloy Yellow Chromate Plated Cadmium	UL94 V-0	3 A	Through Hole Right Angle	Male Pins Plug	Female Screwlock Mating Side
Cinch Connectivity Solutions Trompeter DCCM100PSB	0.043	0.05	Signal	Diallyl Phthalate (DAP) Glass Filled	D-Type Micro-D		Shielded	Gold	100	50 µin	1.27 µm			135 °C	-55 °C	Copper Alloy	Aluminum Alloy Yellow Chromate Plated Cadmium	UL94 V-0	3 A		Male Pins Plug
Cinch Connectivity Solutions Trompeter DCCM100PSBN	0.043	0.05	Signal	Diallyl Phthalate (DAP) Glass Filled	D-Type Micro-D		Shielded	Gold	100	50 µin	1.27 µm			135 °C	-55 °C	Copper Alloy	Aluminum Alloy Electroless Nickel Plated	UL94 V-0	3 A		Male Pins Plug
Cinch Connectivity Solutions Trompeter DCCM100SCBRP	0.043	0.05	Signal	Diallyl Phthalate (DAP) Glass Filled	D-Type Micro-D	Solder	Shielded	Gold	100	50 µin	1.27 µm	5.08 mm	0.2 in	135 °C	-55 °C	Copper Alloy	Aluminum Alloy Yellow Chromate Plated Cadmium	UL94 V-0	3 A	Through Hole Right Angle	Receptacle Female Sockets	Female Screwlock Mating Side

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 272.68
		10	$ 231.82
		25	$ 218.08

Description

General part information

DCCM100 Series

100 Position D-Type, Micro-D Plug, Male Pins Connector
