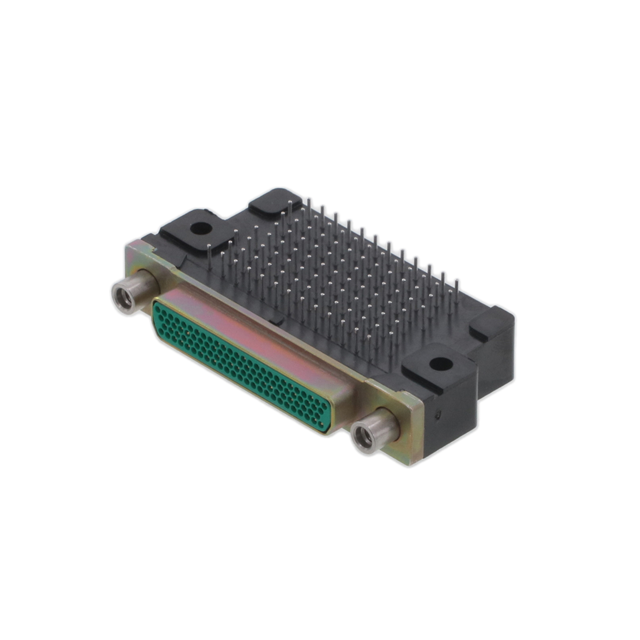

DCCM100PCBRP
ActiveCinch Connectivity Solutions Trompeter
CONN MICRO-D PLUG 100P R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DCCM100PCBRP
ActiveCinch Connectivity Solutions Trompeter
CONN MICRO-D PLUG 100P R/A SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DCCM100PCBRP |
|---|---|
| Backset Spacing | 5.08 mm |
| Backset Spacing | 0.2 in |
| Connector Style | Micro-D, D-Type |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Diallyl Phthalate (DAP), Glass Filled |
| Features | Shielded |
| Flange Feature | Female Screwlock, Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 100 |
| Operating Temperature [Max] | 135 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Yellow Chromate Plated Cadmium, Aluminum Alloy |
| Shell Size, Connector Layout [custom] | 0.043 |
| Shell Size, Connector Layout [custom] | 0.05 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 352.58 | |
| 10 | $ 277.19 | |||
| 25 | $ 253.44 | |||
Description
General part information
DCCM100 Series
100 Position D-Type, Micro-D Plug, Male Pins Connector
Documents
Technical documentation and resources
No documents available
