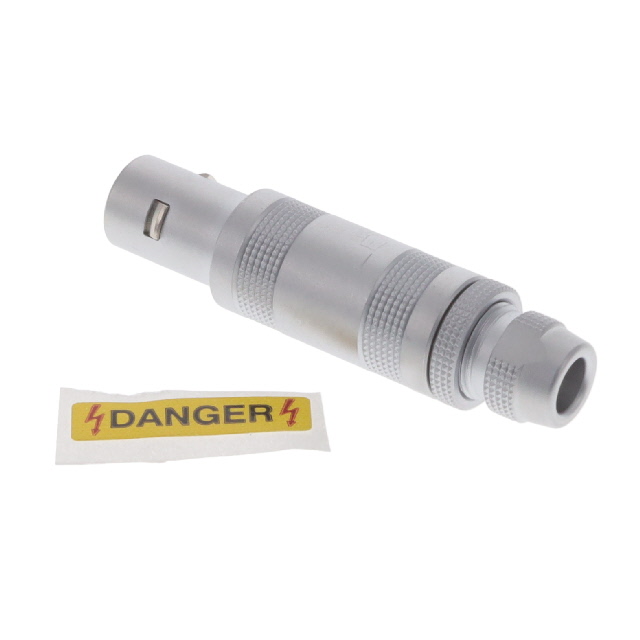

FFB.0S.403.CLAC32

Active

LEMO

CONN PLUG MALE 1P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FFB.0S.403.CLAC32

Active

LEMO

CONN PLUG MALE 1P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFB.0S.403.CLAC32

Backshell Material, Plating	Brass, Chrome
Cable Opening [custom]	3.2 mm, 2.2 mm
Cable Opening [custom]	0.126 in, 0.087 in
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	4 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	1
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	403
Shielding	Shielded

FFB.0S Series

Circular Push Pull Connectors FIXED RECEPTACLE NUT FIXING

Part	Contact Finish - Mating	Ingress Protection	Features	Number of Positions	Connector Type	Contact Material	Current Rating (Amps)	Material Flammability Rating	Insert Material	Shielding	Orientation	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Color	Shell Material	Backshell Material, Plating	Mounting Type	Shell Finish	Fastening Type	Cable Opening [custom]	Cable Opening [custom]	For Use With/Related Products	Accessory Type	Material
LEMO FFB.0S.403.ZLA	Gold	IP50	Insert Only Requires Shell	1	Insert Male Pins	Brass	4 A	UL94 V-0	Polyetheretherketone (PEEK)	Shielded	Keyed	403	-55 °C	250 °C
LEMO FFB.0S.403.CLAC42	Gold	IP50	Backshell	1	Male Pins Plug	Brass	4 A	UL94 V-0	Polyetheretherketone (PEEK)	Shielded	Keyed	403	-55 °C	250 °C	Metal	0.126 in	4.2 mm	0.165 in	3.2 mm	Silver	Brass	Brass Chrome	Free Hanging (In-Line)	Chrome	Push-Pull
LEMO FFB.0S.403.CTAC42	Gold	IP50	Backshell	1	Male Pins Plug	Brass	4 A		Polytetrafluoroethylene (PTFE)	Shielded	Keyed	403	-55 °C	250 °C	Metal	0.126 in	4.2 mm	0.165 in	3.2 mm	Silver	Brass	Brass Chrome	Free Hanging (In-Line)	Chrome	Push-Pull
LEMO FFB.0S.403.CTLC44	Gold	IP50	Backshell	1	Female Sockets Plug	Bronze	4 A		Polytetrafluoroethylene (PTFE)	Shielded	Keyed	403	-55 °C	250 °C	Metal					Silver	Brass	Brass Chrome	Free Hanging (In-Line)	Chrome	Push-Pull
LEMO FFB.0S.403.CTAC44	Gold	IP50	Backshell	1	Male Pins Plug	Brass	4 A		Polytetrafluoroethylene (PTFE)	Shielded	Keyed	403	-55 °C	250 °C	Metal					Silver	Brass	Brass Chrome	Free Hanging (In-Line)	Chrome	Push-Pull
LEMO FFB.0S.403.CLAC32	Gold	IP50	Backshell	1	Male Pins Plug	Brass	4 A	UL94 V-0	Polyetheretherketone (PEEK)	Shielded	Keyed	403	-55 °C	250 °C	Metal					Silver	Brass	Brass Chrome	Free Hanging (In-Line)	Chrome	Push-Pull	2.2 mm 3.2 mm	0.087 in 0.126 in
LEMO FFB.0S.403.ZTA	Gold	IP50	Insert Only Requires Shell	1	Insert Male Pins	Brass	4 A		Polytetrafluoroethylene (PTFE)	Shielded	Keyed	403	-55 °C	250 °C
LEMO FFB.0S.140.LC																				Silver								0S Series Connector	Back-Nut Collet	Brass
LEMO FFB.0S.403.CTAC27	Gold	IP50	Backshell	1	Male Pins Plug	Brass	4 A		Polytetrafluoroethylene (PTFE)	Shielded	Keyed	403	-55 °C	250 °C	Metal					Silver	Brass	Brass Chrome	Free Hanging (In-Line)	Chrome	Push-Pull

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 33.63
		10	$ 29.45
		25	$ 28.18
		50	$ 27.27
		100	$ 26.36
		250	$ 24.91

Description

General part information

FFB.0S Series

Circular Push Pull Connectors FIXED RECEPTACLE NUT FIXING
