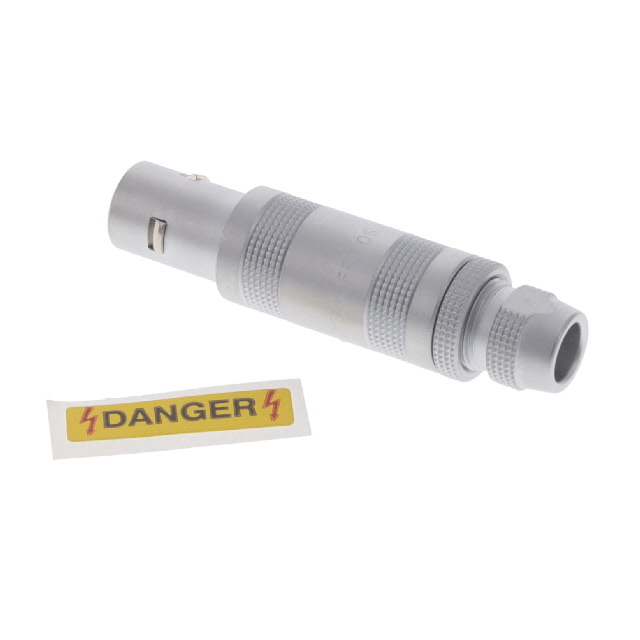

FFB.0S.403.CLAC42

Active

LEMO

CIRCULAR PUSH PULL CONNECTORS STRAIGHT PLUG CABLE COLLET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

FFB.0S.403.CLAC42

Active

LEMO

CIRCULAR PUSH PULL CONNECTORS STRAIGHT PLUG CABLE COLLET

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFB.0S.403.CLAC42

Backshell Material, Plating	Brass, Chrome
Cable Opening [Max] [custom]	4.2 mm
Cable Opening [Max] [custom]	0.165 in
Cable Opening [Min] [custom]	0.126 in
Cable Opening [Min] [custom]	3.2 mm
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	4 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	1
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	403
Shielding	Shielded

ERA.0S Series

Circular Push Pull Connectors FIXED RECEPTACLE NUT FIXING

...

Part	Body Finish	Contact Termination	Center Contact Material	Dielectric Material	Connector Type	Connector Style	Fastening Type	Body Material	Mating Cycles	Mounting Type	Center Contact Plating	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Shield Termination	Impedance	Cable Group	Shell Material	Backshell Material, Plating	Shell Size - Insert	Material Flammability Rating	Primary Material	Shielding	Color	Insert Material	Contact Finish - Mating	Contact Material	Number of Positions	Features	Current Rating (Amps)	Orientation	Shell Finish	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	For Use With/Related Products	Accessory Type	Material	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [custom]	Cable Opening [custom]	Number of Ports	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Mounting Feature	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
LEMO FFA.2S.250.CTLC52	Chrome	Solder	Brass	Polytetrafluoroethylene (PTFE)	Female Socket Plug	Coaxial	Push-Pull	Brass	1000	Free Hanging (In-Line)	Gold	Silver	-55 °C	200 °C	IP50	Clamp	50 Ohms	223 302 400 59B RG-58C
LEMO FFA.0S.302.CLAC22Z					Female Sockets Male Pins Plug		Push-Pull			Free Hanging (In-Line)			-55 °C	250 °C	IP50				Brass	Brass Chrome	302	UL94 V-0	Metal	Shielded	Silver	Polyetheretherketone (PEEK)	Gold	Brass Bronze	2	Backshell	10 A	Keyed	Chrome	0.087 in	0.051 in	1.3 mm	2.2 mm
LEMO GEA.3S.240.LN																									Silver													3B 3S Series Connector	Hex Nut	Brass
LEMO FFA.1S.306.CLLC52					Female Sockets Male Pins Plug		Push-Pull			Free Hanging (In-Line)			-55 °C	250 °C	IP50				Brass	Brass Chrome	306	UL94 V-0	Metal	Shielded	Silver	Polyetheretherketone (PEEK)	Gold	Brass Bronze	6	Backshell	7 A	Keyed	Chrome								0.165 in 0.205 in	4.2 mm	5.2 mm
LEMO FFA.1S.304.CLAC57Z					Female Sockets Male Pins Plug		Push-Pull			Free Hanging (In-Line)			-55 °C	250 °C	IP50				Brass	Brass Chrome	304	UL94 V-0	Metal	Shielded	Silver	Polyetheretherketone (PEEK)	Gold	Brass Bronze	4	Backshell	10 A	Keyed	Chrome											0.205 in 0.224 in	5.2 mm 5.7 mm
LEMO FFA.00.731.CN																																						00 Series Connector	Collet
LEMO FFA.1S.250.CTAC32	Chrome	Solder	Brass	Polytetrafluoroethylene (PTFE)	Male Pin Plug	Coaxial	Push-Pull	Brass	1000	Free Hanging (In-Line)	Gold	Silver	-55 °C	250 °C	IP50	Clamp	50 Ohms	174 174A 178B 188A 196A 316B RG-122																												1
LEMO FFA.3S.314.CLAC92					Female Sockets Male Pins Plug		Push-Pull			Free Hanging (In-Line)			-55 °C	250 °C	IP50				Brass	Brass Chrome	314	UL94 V-0	Metal	Shielded	Silver	Polyetheretherketone (PEEK)	Gold	Brass Bronze	14	Backshell	7 A	Keyed	Chrome														0.382 in	9.7 mm	0.315 in	8 mm
LEMO ERA.0S.405.CLL					Receptacle Female Sockets		Push-Pull						-55 °C	250 °C	IP50				Brass		405	UL94 V-0	Metal	Shielded	Silver	Polyetheretherketone (PEEK)	Gold	Bronze	1		4 A	Keyed	Chrome																		Bulkhead - Rear Side Nut
LEMO FFA.1Y.405.ZTA					Insert Male Pins								-55 °C	230 °C	IP50						405					Polytetrafluoroethylene (PTFE)	Gold	Brass	1	Insert Only Requires Shell	8 A																					59 Áin	1.5 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 33.63
		10	$ 29.45
		25	$ 28.18
		50	$ 27.27
		100	$ 26.36
		250	$ 24.91
Sager	N/A	1	$ 30.46
		10	$ 28.62
		25	$ 26.78
		100	$ 25.30
		250	$ 24.01

Description

General part information

ERA.0S Series

Circular Push Pull Connectors FIXED RECEPTACLE NUT FIXING
