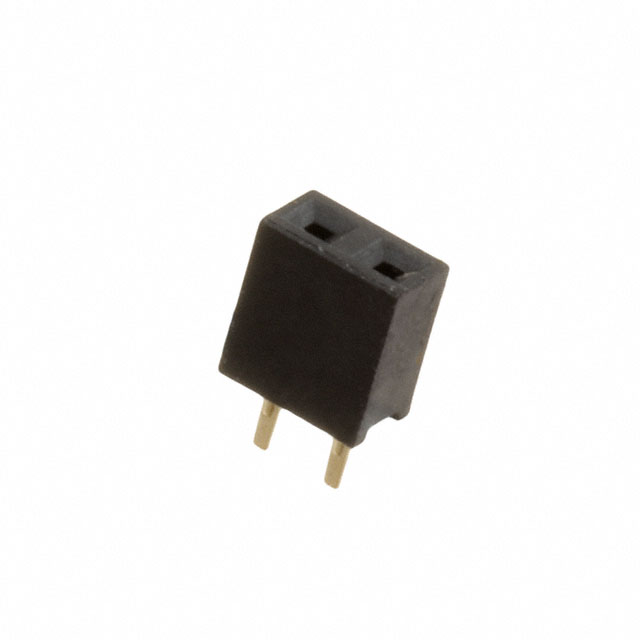

2RS1-02-G

Active

Adam Tech

RECEPTACLE STRIP 2P 2.0MM PITCH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Medical Industry Brochure +1

2RS1-02-G

Active

Adam Tech

RECEPTACLE STRIP 2P 2.0MM PITCH

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Medical Industry Brochure +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2RS1-02-G

Applications	General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	0.094 in
Contact Length - Post	2.4 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.3 mm
Insulation Height	0.169 "
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Termination	Solder
Voltage Rating	250 VAC

2RS1 Series

Part	Contact Finish - Mating	Insulation Color	Mounting Type	Contact Finish Thickness - Post	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows	Number of Positions Loaded	Fastening Type	Material Flammability Rating	Contact Finish Thickness - Mating	Voltage Rating	Applications	Insulation Material	Contact Shape	Contact Length - Post	Contact Length - Post	Contact Material	Termination	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Positions	Connector Type	Contact Finish - Post	Number of Positions
Adam Tech 2RS1-12-G	Gold	Black	Through Hole	Flash	0.079 in	2 mm	1	All	Push-Pull	UL94 V-0	Flash	250 VAC	General Purpose	Polybutylene Terephthalate (PBT)	Square	0.094 in	2.4 mm	Phosphor Bronze	Solder	4.3 mm	0.169 "	-40 °C	105 ░C	Female Socket	12	Receptacle	Gold
Adam Tech 2RS1-17-G	Gold	Black	Through Hole	Flash	0.079 in	2 mm	1	All	Push-Pull	UL94 V-0	Flash	250 VAC	General Purpose	Polybutylene Terephthalate (PBT)	Square	0.094 in	2.4 mm	Phosphor Bronze	Solder	4.3 mm	0.169 "	-40 °C	105 ░C	Female Socket		Receptacle	Gold
Adam Tech 2RS1-03-G	Gold	Black	Through Hole	Flash	0.079 in	2 mm	1	All	Push-Pull	UL94 V-0	Flash	250 VAC	General Purpose	Polybutylene Terephthalate (PBT)	Square	0.094 in	2.4 mm	Phosphor Bronze	Solder	4.3 mm	0.169 "	-40 °C	105 ░C	Female Socket		Receptacle	Gold
Adam Tech 2RS1-09-G	Gold	Black	Through Hole	Flash	0.079 in	2 mm	1	All	Push-Pull	UL94 V-0	Flash	250 VAC	General Purpose	Polybutylene Terephthalate (PBT)	Square	0.094 in	2.4 mm	Phosphor Bronze	Solder	4.3 mm	0.169 "	-40 °C	105 ░C	Female Socket	9	Receptacle	Gold
Adam Tech 2RS1-16-G	Gold	Black	Through Hole	Flash	0.079 in	2 mm	1	All	Push-Pull	UL94 V-0	Flash	250 VAC	General Purpose	Polybutylene Terephthalate (PBT)	Square	0.094 in	2.4 mm	Phosphor Bronze	Solder	4.3 mm	0.169 "	-40 °C	105 ░C	Female Socket		Receptacle	Gold	16
Adam Tech 2RS1-06-G	Gold	Black	Through Hole	Flash	0.079 in	2 mm	1	All	Push-Pull	UL94 V-0	Flash	250 VAC	General Purpose	Polybutylene Terephthalate (PBT)	Square	0.094 in	2.4 mm	Phosphor Bronze	Solder	4.3 mm	0.169 "	-40 °C	105 ░C	Female Socket	6	Receptacle	Gold
Adam Tech 2RS1-19-G	Gold	Black	Through Hole	Flash	0.079 in	2 mm	1	All	Push-Pull	UL94 V-0	Flash	250 VAC	General Purpose	Polybutylene Terephthalate (PBT)	Square	0.094 in	2.4 mm	Phosphor Bronze	Solder	4.3 mm	0.169 "	-40 °C	105 ░C	Female Socket	19	Receptacle	Gold
Adam Tech 2RS1-02-G	Gold	Black	Through Hole	Flash	0.079 in	2 mm	1	All	Push-Pull	UL94 V-0	Flash	250 VAC	General Purpose	Polybutylene Terephthalate (PBT)	Square	0.094 in	2.4 mm	Phosphor Bronze	Solder	4.3 mm	0.169 "	-40 °C	105 ░C	Female Socket	2	Receptacle	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 0.45
		10	$ 0.38
		118	$ 0.32
		590	$ 0.28
		1062	$ 0.27
		5074	$ 0.24
		10030	$ 0.23

Description

General part information

2RS1 Series

2 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold

Documents

Technical documentation and resources

ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Medical Industry Brochure

Datasheet
