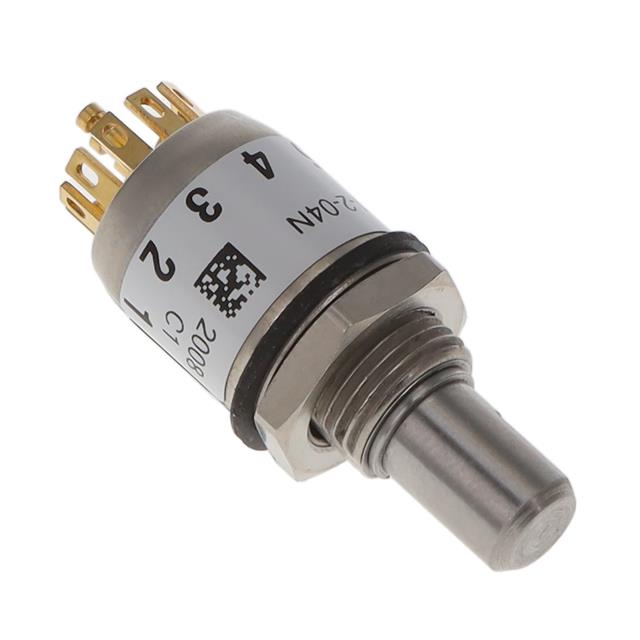

50KM36-01-2-04N
ActiveGrayhill Inc.
SWITCH ROTARY 4POS 150MA 115V
Deep-Dive with AI
Search across all available documentation for this part.
50KM36-01-2-04N
ActiveGrayhill Inc.
SWITCH ROTARY 4POS 150MA 115V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 50KM36-01-2-04N |
|---|---|
| Actuator Length [x] | 9.53 mm |
| Actuator Type | Flatted |
| Actuator Type [diameter] | 3.17 mm |
| Angle of Throw | 36 ° |
| Circuit per Deck | DP4T |
| Contact Finish | Gold |
| Contact Timing | Non-Shorting |
| Current Rating (Amps) | 200 mA, 150 mA |
| Depth Behind Panel [z] | 18.77 mm |
| Index Stops | Fixed |
| Number of Decks [custom] | 1 |
| Number of Poles per Deck | 2 |
| Number of Positions | 4 |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 115 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 52.33 | |
| 5 | $ 44.96 | |||
| 10 | $ 42.10 | |||
| 25 | $ 38.58 | |||
| 50 | $ 36.10 | |||
| 100 | $ 33.77 | |||
| 250 | $ 31.59 | |||
Description
General part information
50KM36 Series
Rotary Switch 4 Position DP4T 150mA (AC), 200mA (DC) 115 VAC Panel Mount
Documents
Technical documentation and resources
No documents available
