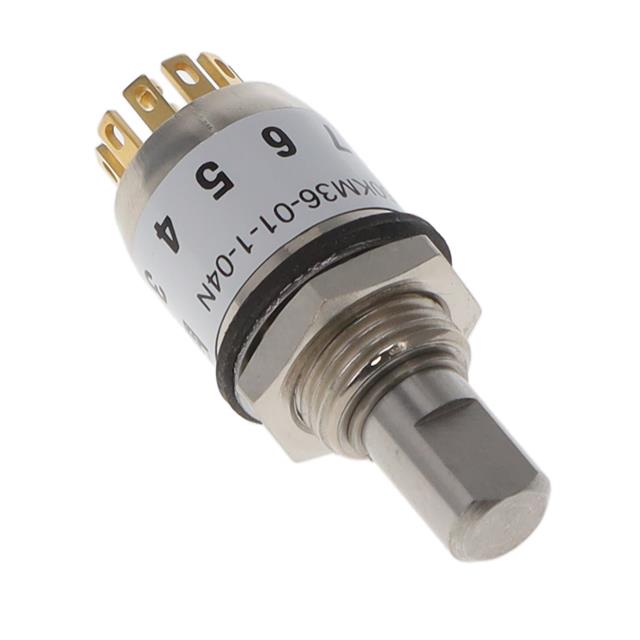

50KM36-01-1-04N
ActiveGrayhill Inc.
SWITCH ROTARY SP4T 4 FLATTED SHAFT SOLDER LUG 0.2A 220VAC 28VDC
Deep-Dive with AI
Search across all available documentation for this part.
50KM36-01-1-04N
ActiveGrayhill Inc.
SWITCH ROTARY SP4T 4 FLATTED SHAFT SOLDER LUG 0.2A 220VAC 28VDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 50KM36-01-1-04N |
|---|---|
| Actuator Length [x] | 9.53 mm |
| Actuator Type | Flatted |
| Actuator Type [diameter] | 3.17 mm |
| Angle of Throw | 36 ° |
| Circuit per Deck | SP4T |
| Contact Finish | Gold |
| Contact Timing | Non-Shorting |
| Current Rating (Amps) | 200 mA, 150 mA |
| Depth Behind Panel [z] | 18.77 mm |
| Index Stops | Fixed |
| Number of Decks [custom] | 1 |
| Number of Poles per Deck | 1 |
| Number of Positions | 4 |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 115 V |
| Voltage Rating - DC | 28 V |
50KM36 Series
| Part | Depth Behind Panel [z] | Voltage Rating - AC | Index Stops | Contact Finish | Voltage Rating - DC | Number of Decks [custom] | Circuit per Deck | Contact Timing | Number of Poles per Deck | Angle of Throw | Current Rating (Amps) | Actuator Type [diameter] | Actuator Type | Actuator Length [x] | Termination Style | Number of Positions | Features | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Grayhill Inc. | 18.77 mm | 115 V | Fixed | Gold | 28 V | 1 | DP3T | Non-Shorting | 2 | 36 ° | 150 mA 200 mA | 3.17 mm | Flatted | 9.53 mm | Solder Lug | |||
Grayhill Inc. | 18.77 mm | 115 V | Fixed | Gold | 28 V | 1 | SP4T | Non-Shorting | 1 | 36 ° | 150 mA 200 mA | 3.17 mm | Flatted | 9.53 mm | Solder Lug | 4 | ||
Grayhill Inc. | 18.77 mm | 115 V | Fixed | Gold | 28 V | 1 | DPDT | Non-Shorting | 2 | 36 ° | 150 mA 200 mA | 3.17 mm | Flatted | 9.53 mm | Solder Lug | 2 | ||
Grayhill Inc. | 18.77 mm | 115 V | Fixed | Gold | 28 V | 1 | SP6T | Non-Shorting | 1 | 36 ° | 150 mA 200 mA | 3.17 mm | Flatted | 9.53 mm | Solder Lug | 6 | ||
Grayhill Inc. | 18.77 mm | 115 V | Fixed | Gold | 28 V | 1 | DP4T | Non-Shorting | 2 | 36 ° | 150 mA 200 mA | 3.17 mm | Flatted | 9.53 mm | Solder Lug | 4 | ||
Grayhill Inc. | 18.77 mm | 115 V | Fixed | Gold | 28 V | 1 | SP8T | Non-Shorting | 1 | 36 ° | 150 mA 200 mA | 3.17 mm | Flatted | 9.53 mm | Solder Lug | 8 | ||
Grayhill Inc. | 18.77 mm | 125 V | Fixed | Gold | 28 V | 1 | DP5T | Non-Shorting | 2 | 36 ° | 150 mA 200 mA | 3.17 mm | Flatted | 9.53 mm | Solder Lug | Process Sealed Shaft and Panel Sealed | 6.45 mm | |
Grayhill Inc. | 18.77 mm | 125 V | Fixed | Gold | 28 V | 1 | SP3T | Non-Shorting | 1 | 36 ° | 150 mA 200 mA | 3.17 mm | Flatted | 9.53 mm | Solder Lug | Process Sealed Shaft and Panel Sealed | 6.45 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 46.74 | |
| 5 | $ 40.16 | |||
| 10 | $ 37.61 | |||
| 25 | $ 34.47 | |||
| 50 | $ 32.26 | |||
| 100 | $ 30.17 | |||
| 250 | $ 27.89 | |||
Description
General part information
50KM36 Series
Rotary Switch 4 Position SP4T 150mA (AC), 200mA (DC) 115 VAC Panel Mount
Documents
Technical documentation and resources
No documents available
