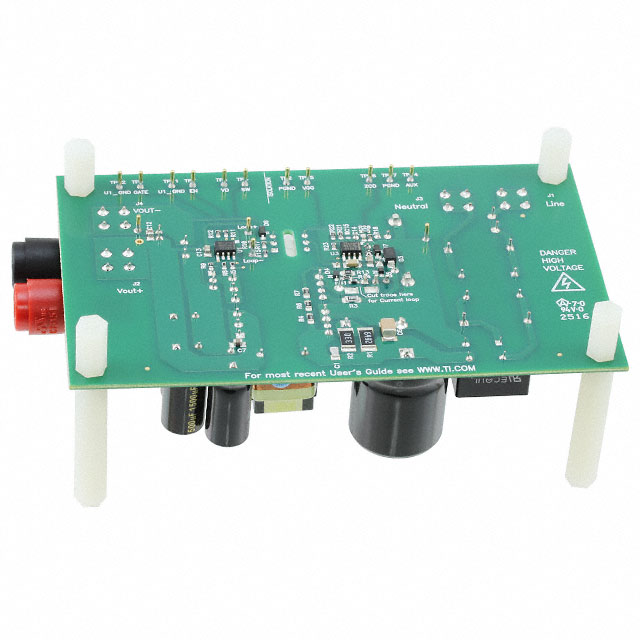

UCC24610EVM-563

Active

Texas Instruments

EVAL MODULE FOR UCC24610-563

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UCC24610EVM-563

Active

Texas Instruments

EVAL MODULE FOR UCC24610-563

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UCC24610EVM-563

Board Type	Fully Populated
Current - Output	5 A
Frequency - Switching [Max]	140.4 kHz
Frequency - Switching [Min]	26.3 kHz
Main Purpose	AC/DC, Secondary Side
Outputs and Type	Isolated
Outputs and Type	1
Power - Output	25 W
Regulator Topology	Flyback
Supplied Contents	Board(s)
Utilized IC / Part	UCC24610
Voltage - Input [Max]	265 VAC
Voltage - Input [Min]	85 VAC
Voltage - Output	5 V

UCC24610 Series

Secondary side synchronous rectifier controller

Part	Supplier Device Package	Package / Case	Package / Case [y]	Package / Case [x]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input [Max]	Voltage - Input [Min]	Current - Supply	Applications	Mounting Type	Voltage - Output	Utilized IC / Part	Outputs and Type	Outputs and Type	Regulator Topology	Frequency - Switching	Power - Output	Supplied Contents	Board Type	Main Purpose	Frequency - Switching [Min]	Frequency - Switching [Max]	Current - Output
Texas Instruments UCC24610DR	8-SOIC	8-SOIC	3.9 mm	0.154 in	125 °C	-40 °C	5.5 V	4.5 V	2.15 mA	Flyback Forward Converters LLC	Surface Mount
Texas Instruments UCC24610EVM-693												5 V	UCC24610	Isolated	1	Flyback	1 MHz	10 W	Board(s)	Fully Populated	AC/DC Secondary Side
Texas Instruments UCC24610DRBT	8-SON (3x3)	8-VDFN Exposed Pad			125 °C	-40 °C	5.5 V	4.5 V	2.15 mA	Flyback Forward Converters LLC	Surface Mount
Texas Instruments UCC24610EVM-563							265 VAC	85 VAC				5 V	UCC24610	Isolated	1	Flyback		25 W	Board(s)	Fully Populated	AC/DC Secondary Side	26.3 kHz	140.4 kHz	5 A
Texas Instruments UCC24610DRBR	8-SON (3x3)	8-VDFN Exposed Pad			125 °C	-40 °C	5.5 V	4.5 V	2.15 mA	Flyback Forward Converters LLC	Surface Mount
Texas Instruments UCC24610D	8-SOIC	8-SOIC	3.9 mm	0.154 in	125 °C	-40 °C	5.5 V	4.5 V	2.15 mA	Flyback Forward Converters LLC	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 111.87

Description

General part information

UCC24610 Series

This GREEN Rectifier controller is a high-performance controller and driver for standard and logic-level N-channel MOSFET power devices used for low-voltage secondary-side synchronous rectification.

The combination of controller and MOSFET emulates a near-ideal diode rectifier. This solution not only directly reduces power dissipation of the rectifier but also indirectly reduces primary-side losses as well, due to compounding of efficiency gains.

Using drain-to-source voltage sensing, the UCC24610 is ideal for Flyback and LLC-resonant power supplies but can also be used with other power architectures. The UCC24610 is optimized for output voltages from 4.5 V to 5.5 V, and is suitable for use with lower and higher output voltages as well.
