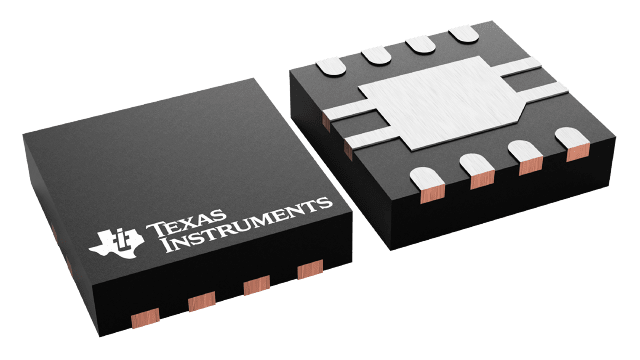

UCC24610DRBT
ActiveSECONDARY SIDE SYNCHRONOUS RECTIFIER CONTROLLER
Deep-Dive with AI
Search across all available documentation for this part.
UCC24610DRBT
ActiveSECONDARY SIDE SYNCHRONOUS RECTIFIER CONTROLLER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UCC24610DRBT |
|---|---|
| Applications | Flyback, Forward Converters, LLC |
| Current - Supply | 2.15 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-VDFN Exposed Pad |
| Supplier Device Package | 8-SON (3x3) |
| Voltage - Input [Max] | 5.5 V |
| Voltage - Input [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.70 | |
| 10 | $ 1.52 | |||
| 25 | $ 1.44 | |||
| 100 | $ 1.22 | |||
| Digi-Reel® | 1 | $ 1.70 | ||
| 10 | $ 1.52 | |||
| 25 | $ 1.44 | |||
| 100 | $ 1.22 | |||
| Tape & Reel (TR) | 250 | $ 1.15 | ||
| 500 | $ 1.01 | |||
| 1250 | $ 0.83 | |||
| 2500 | $ 0.78 | |||
| 6250 | $ 0.75 | |||
| 12500 | $ 0.72 | |||
| Texas Instruments | SMALL T&R | 1 | $ 1.41 | |
| 100 | $ 1.08 | |||
| 250 | $ 0.80 | |||
| 1000 | $ 0.57 | |||
Description
General part information
UCC24610 Series
This GREEN Rectifier controller is a high-performance controller and driver for standard and logic-level N-channel MOSFET power devices used for low-voltage secondary-side synchronous rectification.
The combination of controller and MOSFET emulates a near-ideal diode rectifier. This solution not only directly reduces power dissipation of the rectifier but also indirectly reduces primary-side losses as well, due to compounding of efficiency gains.
Using drain-to-source voltage sensing, the UCC24610 is ideal for Flyback and LLC-resonant power supplies but can also be used with other power architectures. The UCC24610 is optimized for output voltages from 4.5 V to 5.5 V, and is suitable for use with lower and higher output voltages as well.
