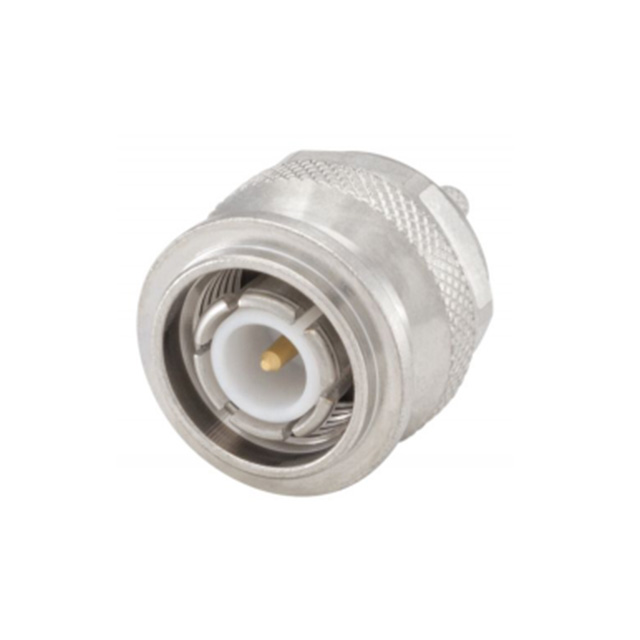

56S107-802N5

Active

Rosenberger

CONN TNC PLUG STR 50OHM CRIMP

Search across all available documentation for this part.

Active

Rosenberger

CONN TNC PLUG STR 50OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	56S107-802N5

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-174A, 316, 188A
Center Contact Material	Bronze
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Crimp
Voltage Rating	500 V

Part	Body Finish	Voltage Rating	Shield Termination	Mounting Type	Contact Termination	Connector Style	Impedance	Mating Cycles	Number of Ports	Center Contact Plating	Frequency - Max [Max]	Cable Group	Housing Color	Body Material	Connector Type	Center Contact Material	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Includes
Rosenberger 56S107-803N5	White Bronze	500 V	Crimp	Free Hanging (In-Line)	Crimp	TNC	50 Ohms	500	1	Gold	10 GHz	RG-316	Silver	Brass	Male Pin Plug	Bronze	Polytetrafluoroethylene (PTFE)
Rosenberger 56S107-106N5	White Bronze	500 V	Crimp	Free Hanging (In-Line)	Crimp	TNC	50 Ohms	500	1	Gold	10 GHz	RG-58C	Silver	Brass	Male Pin Plug	Brass	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	141	1 Connector 1 Contact 1 Ferrule
Rosenberger 56S107-802N5	White Bronze	500 V	Crimp	Free Hanging (In-Line)	Crimp	TNC	50 Ohms	500	1	Gold	10 GHz	188A 316 RG-174A	Silver	Brass	Male Pin Plug	Bronze	Polytetrafluoroethylene (PTFE)				1 Connector 1 Contact 1 Ferrule

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
