56S107-803N5

Active

Rosenberger

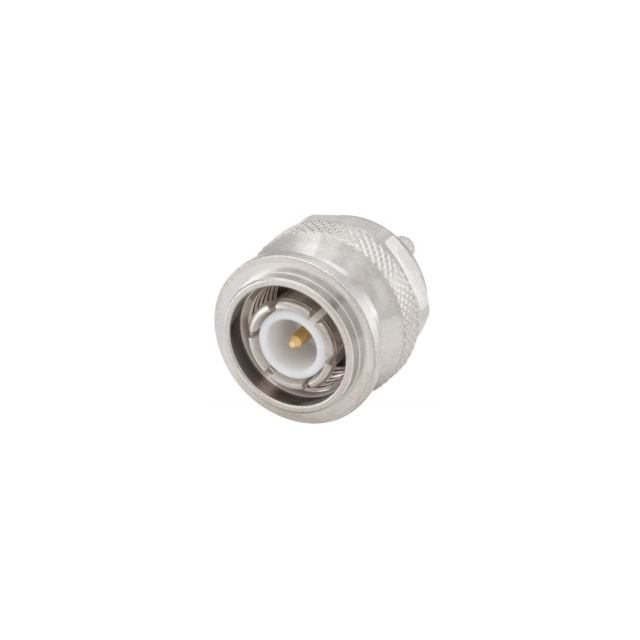

TNC STRAIGHT PLUG

Search across all available documentation for this part.

Active

Rosenberger

TNC STRAIGHT PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	56S107-803N5

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-316
Center Contact Material	Bronze
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Crimp
Voltage Rating	500 V

Part	Body Finish	Voltage Rating	Shield Termination	Mounting Type	Contact Termination	Connector Style	Impedance	Mating Cycles	Number of Ports	Center Contact Plating	Frequency - Max [Max]	Cable Group	Housing Color	Body Material	Connector Type	Center Contact Material	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Includes
Rosenberger 56S107-803N5	White Bronze	500 V	Crimp	Free Hanging (In-Line)	Crimp	TNC	50 Ohms	500	1	Gold	10 GHz	RG-316	Silver	Brass	Male Pin Plug	Bronze	Polytetrafluoroethylene (PTFE)
Rosenberger 56S107-106N5	White Bronze	500 V	Crimp	Free Hanging (In-Line)	Crimp	TNC	50 Ohms	500	1	Gold	10 GHz	RG-58C	Silver	Brass	Male Pin Plug	Brass	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	141	1 Connector 1 Contact 1 Ferrule
Rosenberger 56S107-802N5	White Bronze	500 V	Crimp	Free Hanging (In-Line)	Crimp	TNC	50 Ohms	500	1	Gold	10 GHz	188A 316 RG-174A	Silver	Brass	Male Pin Plug	Bronze	Polytetrafluoroethylene (PTFE)				1 Connector 1 Contact 1 Ferrule

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	300	$ 10.52

General part information

TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
