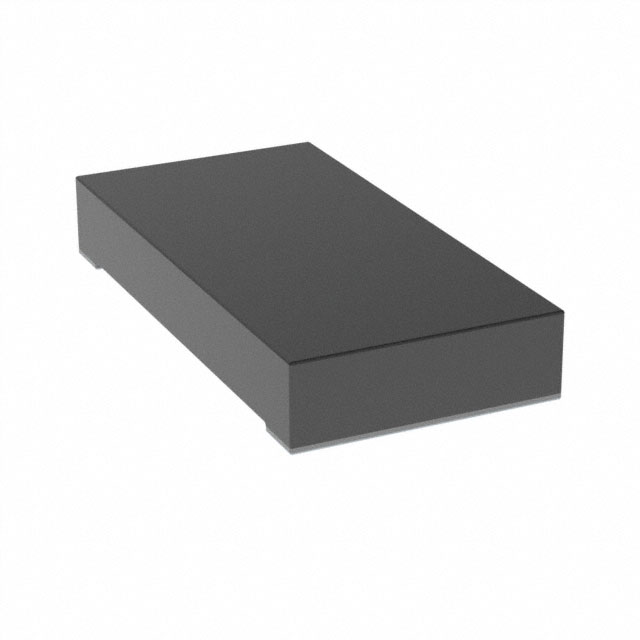

TLR2HDTE7L00F50

Active

KOA Speer Electronics, Inc.

RES 7M OHM 1% 1W 2010

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TLR2HDTE7L00F50

Composition	Metal Element
Features	Automotive AEC-Q200, Current Sense
Height - Seated (Max) [Max] [z]	0.8 mm
Height - Seated (Max) [Max] [z]	0.032 "
Number of Terminations	2
Operating Temperature [Max]	170 °C
Operating Temperature [Min]	-65 ░C
Package / Case	2010 (5025 Metric)
Power (Watts)	1 W
Ratings	AEC-Q200
Resistance	7 mOhms
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	0.098 in
Size / Dimension [y]	2.5 mm
Supplier Device Package	2010
Temperature Coefficient	50 ppm/°C
Tolerance	1 %

TLR2H Series

Part	Package / Case	Power (Watts)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Temperature Coefficient	Tolerance	Number of Terminations	Composition	Resistance	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Features	Ratings
KOA Speer Electronics, Inc. TLR2HWDTE7L00F75	2010 (5025 Metric)	2 W	0.8 mm	0.032 "	75 ppm/°C	1 %	2	Metal Element	7 mOhms	2010	170 °C	-65 ░C	0.197 in	0.098 in	5 mm	2.5 mm	Automotive AEC-Q200 Current Sense	AEC-Q200
KOA Speer Electronics, Inc. TLR2HWDTE2L50F75	2010 (5025 Metric)	2 W	0.8 mm	0.032 "	75 ppm/°C	1 %	2	Metal Element	2.5 mOhms	2010	170 °C	-65 ░C	0.197 in	0.098 in	5 mm	2.5 mm	Automotive AEC-Q200 Current Sense	AEC-Q200
KOA Speer Electronics, Inc. TLR2HDTE6L00F75	2010 (5025 Metric)	1 W	0.8 mm	0.032 "	75 ppm/°C	1 %	2	Metal Element	6 mOhms	2010	170 °C	-65 ░C	0.197 in	0.098 in	5 mm	2.5 mm	Automotive AEC-Q200 Current Sense	AEC-Q200
KOA Speer Electronics, Inc. TLR2HWDTE6L00F75	2010 (5025 Metric)	2 W	0.8 mm	0.032 "	75 ppm/°C	1 %	2	Metal Element	6 mOhms	2010	170 °C	-65 ░C	0.197 in	0.098 in	5 mm	2.5 mm	Automotive AEC-Q200 Current Sense	AEC-Q200
KOA Speer Electronics, Inc. TLR2HWDTE4L00F50	2010 (5025 Metric)	2 W	0.8 mm	0.032 "	50 ppm/°C	1 %	2	Metal Element	4 mOhms	2010	170 °C	-65 ░C	0.197 in	0.098 in	5 mm	2.5 mm	Automotive AEC-Q200 Current Sense	AEC-Q200
KOA Speer Electronics, Inc. TLR2HWDTE5L00F75	2010 (5025 Metric)	2 W	0.8 mm	0.032 "	75 ppm/°C	1 %	2	Metal Element	5 mOhms	2010	170 °C	-65 ░C	0.197 in	0.098 in	5 mm	2.5 mm	Automotive AEC-Q200 Current Sense	AEC-Q200
KOA Speer Electronics, Inc. TLR2HDTE7L00F50	2010 (5025 Metric)	1 W	0.8 mm	0.032 "	50 ppm/°C	1 %	2	Metal Element	7 mOhms	2010	170 °C	-65 ░C	0.197 in	0.098 in	5 mm	2.5 mm	Automotive AEC-Q200 Current Sense	AEC-Q200
KOA Speer Electronics, Inc. TLR2HWDTE9L00F50	2010 (5025 Metric)	2 W	0.8 mm	0.032 "	50 ppm/°C	1 %	2	Metal Element	9 mOhms	2010	170 °C	-65 ░C	0.197 in	0.098 in	5 mm	2.5 mm	Automotive AEC-Q200 Current Sense	AEC-Q200
KOA Speer Electronics, Inc. TLR2HWDTE4L00F75	2010 (5025 Metric)	2 W	0.8 mm	0.032 "	75 ppm/°C	1 %	2	Metal Element	4 mOhms	2010	170 °C	-65 ░C	0.197 in	0.098 in	5 mm	2.5 mm	Automotive AEC-Q200 Current Sense	AEC-Q200
KOA Speer Electronics, Inc. TLR2HWDTE5L00F50	2010 (5025 Metric)	2 W	0.8 mm	0.032 "	50 ppm/°C	1 %	2	Metal Element	5 mOhms	2010	170 °C	-65 ░C	0.197 in	0.098 in	5 mm	2.5 mm	Automotive AEC-Q200 Current Sense	AEC-Q200

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	4000	$ 0.28

Description

General part information

TLR2H Series

7 mOhms ±1% 1W Chip Resistor 2010 (5025 Metric) Automotive AEC-Q200, Current Sense Metal Element
