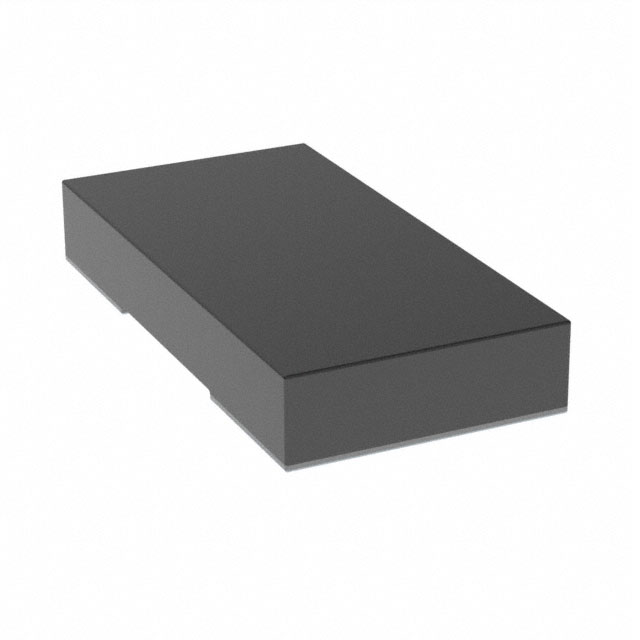

TLR2HWDTE5L00F75
ActiveKOA Speer Electronics, Inc.
RES 5M OHM 1% 2W 2010
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TLR2HWDTE5L00F75
ActiveKOA Speer Electronics, Inc.
RES 5M OHM 1% 2W 2010
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TLR2HWDTE5L00F75 |
|---|---|
| Composition | Metal Element |
| Features | Automotive AEC-Q200, Current Sense |
| Height - Seated (Max) [Max] [z] | 0.8 mm |
| Height - Seated (Max) [Max] [z] | 0.032 " |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 170 °C |
| Operating Temperature [Min] | -65 ░C |
| Package / Case | 2010 (5025 Metric) |
| Power (Watts) | 2 W |
| Ratings | AEC-Q200 |
| Resistance | 5 mOhms |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 0.098 in |
| Size / Dimension [y] | 2.5 mm |
| Supplier Device Package | 2010 |
| Temperature Coefficient | 75 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.81 | |
| 10 | $ 0.66 | |||
| 25 | $ 0.62 | |||
| 50 | $ 0.56 | |||
| 100 | $ 0.46 | |||
| 250 | $ 0.42 | |||
| 500 | $ 0.35 | |||
| 1000 | $ 0.29 | |||
| Digi-Reel® | 1 | $ 0.81 | ||
| 10 | $ 0.66 | |||
| 25 | $ 0.62 | |||
| 50 | $ 0.56 | |||
| 100 | $ 0.46 | |||
| 250 | $ 0.42 | |||
| 500 | $ 0.35 | |||
| 1000 | $ 0.29 | |||
| Tape & Reel (TR) | 4000 | $ 0.28 | ||
| 8000 | $ 0.27 | |||
| 12000 | $ 0.27 | |||
| 28000 | $ 0.26 | |||
Description
General part information
TLR2H Series
5 mOhms ±1% 2W Chip Resistor 2010 (5025 Metric) Automotive AEC-Q200, Current Sense Metal Element
