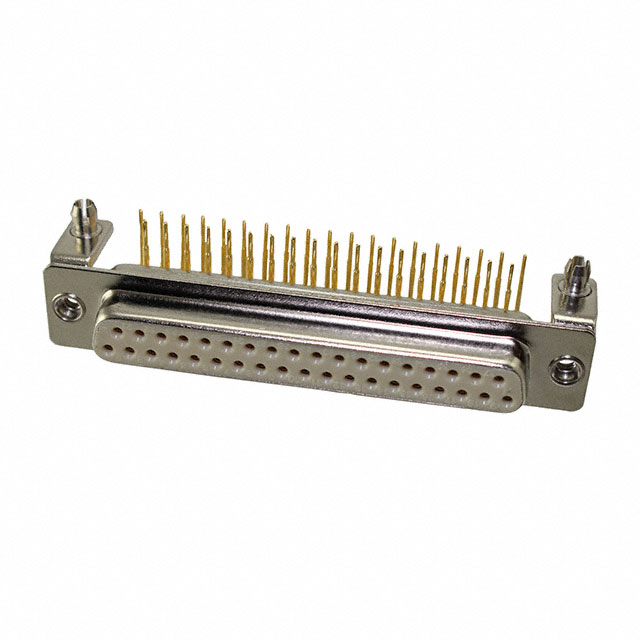

173-E37-213R461

Active

MH Connectors

D SUB CONNECTOR, DB37, STANDARD, RECEPTACLE, 173-E M SERIES, 37 CONTACTS, DC, SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Miscellaneous EN +3

173-E37-213R461

Active

MH Connectors

D SUB CONNECTOR, DB37, STANDARD, RECEPTACLE, 173-E M SERIES, 37 CONTACTS, DC, SOLDER

Deep-Dive with AI

DocumentsDatasheet Miscellaneous EN +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	173-E37-213R461

Backset Spacing	0.283 in
Backset Spacing	7.2 mm
Color	White
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Board Lock, Mounting Brackets
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder

173-E37 Series

Part	Dielectric Material	Contact Finish	Contact Type	Current Rating (Amps)	Contact Finish Thickness	Backset Spacing	Backset Spacing	Termination	Material Flammability Rating	Connector Type	Mounting Type	Color	Shell Size, Connector Layout	Connector Style	Flange Feature	Number of Rows	Number of Positions	Shell Material, Finish	Features	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]
MH Connectors 173-E37-211R001	Polyamide (PA6T) Nylon 6T	Gold	Signal	5 A	Flash	0.283 in	7.2 mm	Solder	UL94 V-0	Receptacle Female Sockets	Panel Mount Right Angle Through Hole	White	4 (DC C)	D-Sub	Housing/Shell (Unthreaded)	2	37	Steel Yellow Chromate Plated
MH Connectors 173-E37-113R001	Polyamide (PA6T) Nylon 6T	Gold	Signal	5 A	Flash	0.283 in	7.2 mm	Solder	UL94 V-0	Male Pins Plug	Panel Mount Right Angle Through Hole	White	4 (DC C)	D-Sub	Housing/Shell (Unthreaded)	2	37	Nickel Plated Steel	Grounding Indents	Brass
MH Connectors 173-E37-212-001	Polybutylene Terephthalate (PBT)	Gold	Signal	5 A	Flash	0.283 in	7.2 mm	Solder	UL94 V-0	Receptacle Female Sockets	Panel Mount Right Angle Through Hole	White	4 (DC C)	D-Sub	Housing/Shell (Unthreaded)	2	37
MH Connectors 173-E37-211R241	Polyamide (PA6T) Nylon 6T	Gold	Signal	5 A	Flash	0.283 in	7.2 mm	Solder	UL94 V-0	Receptacle Female Sockets	Panel Mount Right Angle Through Hole	White	4 (DC C)	D-Sub	Mating Side Standard Screws (4-40)	2	37	Steel Yellow Chromate Plated	Mounting Brackets
MH Connectors 173-E37-213R461	Polyamide (PA6T) Nylon 6T	Gold	Signal	5 A	Flash	0.283 in	7.2 mm	Solder	UL94 V-0	Receptacle Female Sockets	Through Hole Right Angle	White	4 (DC C)	D-Sub	Housing/Shell (4-40)	2	37	Nickel Plated Steel	Board Lock Mounting Brackets	Copper	-55 °C	125 °C
MH Connectors 173-E37-213R141	Polyamide (PA6T) Nylon 6T	Gold	Signal	5 A	Flash	0.283 in	7.2 mm	Solder	UL94 V-0	Receptacle Female Sockets	Through Hole Right Angle	White	4 (DC C)	D-Sub	Female Screwlock (4-40) Mating Side	2	37	Nickel Plated Steel	Mounting Brackets	Copper	-55 °C	125 °C
MH Connectors 173-E37-113R141	Polyamide (PA6T) Nylon 6T	Gold	Signal	5 A	Flash	0.283 in	7.2 mm	Solder	UL94 V-0	Male Pins Plug	Panel Mount Right Angle Through Hole	White	4 (DC C)	D-Sub	Female Screwlock (4-40) Mating Side	2	37	Nickel Plated Steel	Grounding Indents Mounting Brackets	Brass
MH Connectors 173-E37-111R001	Polyamide (PA6T) Nylon 6T	Gold	Signal	5 A	Flash	0.283 in	7.2 mm	Solder	UL94 V-0	Male Pins Plug	Panel Mount Right Angle Through Hole	White	4 (DC C)	D-Sub	Housing/Shell (Unthreaded)	2	37	Steel Yellow Chromate Plated		Brass
MH Connectors 173-E37-211R141	Polyamide (PA6T) Nylon 6T	Gold	Signal	5 A	Flash	0.283 in	7.2 mm	Solder	UL94 V-0	Receptacle Female Sockets	Panel Mount Right Angle Through Hole	White	4 (DC C)	D-Sub	Female Screwlock (4-40) Mating Side	2	37	Steel Yellow Chromate Plated	Mounting Brackets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 13.07
		10	$ 11.58
		25	$ 11.14
		40	$ 10.69
		80	$ 10.10
		240	$ 9.21
		440	$ 8.61
		960	$ 7.90
Newark	Each	50	$ 8.33
		100	$ 7.94
		250	$ 7.55

Description

General part information

173-E37 Series

37 Position D-Sub Receptacle, Female Sockets Connector
