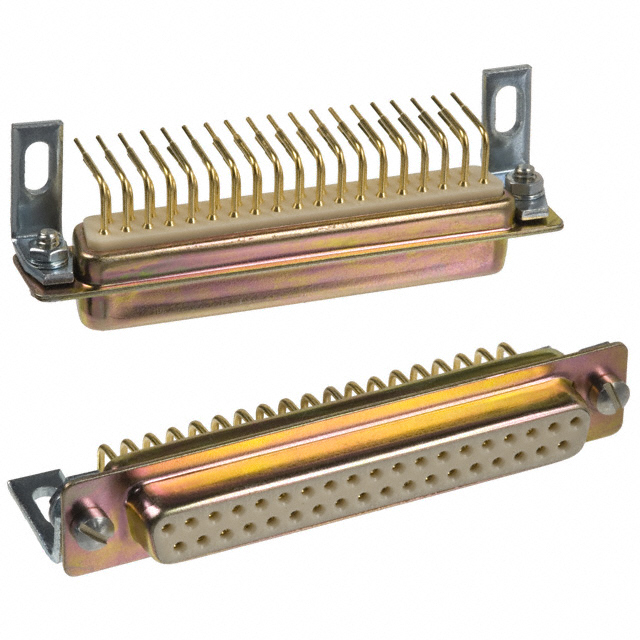

173-E37-211R241

Obsolete

MH Connectors

CONN D-SUB RCPT 37POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Backshell Reference Guide

173-E37-211R241

Obsolete

MH Connectors

CONN D-SUB RCPT 37POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet Backshell Reference Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	173-E37-211R241

Backset Spacing	0.283 in
Backset Spacing	7.2 mm
Color	White
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Mounting Brackets
Flange Feature	Mating Side, Standard Screws (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	37
Number of Rows	2
Shell Material, Finish	Steel, Yellow Chromate Plated
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder

173-E37 Series

Part	Dielectric Material	Contact Finish	Contact Type	Current Rating (Amps)	Contact Finish Thickness	Backset Spacing	Backset Spacing	Termination	Material Flammability Rating	Connector Type	Mounting Type	Color	Shell Size, Connector Layout	Connector Style	Flange Feature	Number of Rows	Number of Positions	Shell Material, Finish	Features	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]
MH Connectors 173-E37-211R001	Polyamide (PA6T) Nylon 6T	Gold	Signal	5 A	Flash	0.283 in	7.2 mm	Solder	UL94 V-0	Receptacle Female Sockets	Panel Mount Right Angle Through Hole	White	4 (DC C)	D-Sub	Housing/Shell (Unthreaded)	2	37	Steel Yellow Chromate Plated
MH Connectors 173-E37-113R001	Polyamide (PA6T) Nylon 6T	Gold	Signal	5 A	Flash	0.283 in	7.2 mm	Solder	UL94 V-0	Male Pins Plug	Panel Mount Right Angle Through Hole	White	4 (DC C)	D-Sub	Housing/Shell (Unthreaded)	2	37	Nickel Plated Steel	Grounding Indents	Brass
MH Connectors 173-E37-212-001	Polybutylene Terephthalate (PBT)	Gold	Signal	5 A	Flash	0.283 in	7.2 mm	Solder	UL94 V-0	Receptacle Female Sockets	Panel Mount Right Angle Through Hole	White	4 (DC C)	D-Sub	Housing/Shell (Unthreaded)	2	37
MH Connectors 173-E37-211R241	Polyamide (PA6T) Nylon 6T	Gold	Signal	5 A	Flash	0.283 in	7.2 mm	Solder	UL94 V-0	Receptacle Female Sockets	Panel Mount Right Angle Through Hole	White	4 (DC C)	D-Sub	Mating Side Standard Screws (4-40)	2	37	Steel Yellow Chromate Plated	Mounting Brackets
MH Connectors 173-E37-213R461	Polyamide (PA6T) Nylon 6T	Gold	Signal	5 A	Flash	0.283 in	7.2 mm	Solder	UL94 V-0	Receptacle Female Sockets	Through Hole Right Angle	White	4 (DC C)	D-Sub	Housing/Shell (4-40)	2	37	Nickel Plated Steel	Board Lock Mounting Brackets	Copper	-55 °C	125 °C
MH Connectors 173-E37-213R141	Polyamide (PA6T) Nylon 6T	Gold	Signal	5 A	Flash	0.283 in	7.2 mm	Solder	UL94 V-0	Receptacle Female Sockets	Through Hole Right Angle	White	4 (DC C)	D-Sub	Female Screwlock (4-40) Mating Side	2	37	Nickel Plated Steel	Mounting Brackets	Copper	-55 °C	125 °C
MH Connectors 173-E37-113R141	Polyamide (PA6T) Nylon 6T	Gold	Signal	5 A	Flash	0.283 in	7.2 mm	Solder	UL94 V-0	Male Pins Plug	Panel Mount Right Angle Through Hole	White	4 (DC C)	D-Sub	Female Screwlock (4-40) Mating Side	2	37	Nickel Plated Steel	Grounding Indents Mounting Brackets	Brass
MH Connectors 173-E37-111R001	Polyamide (PA6T) Nylon 6T	Gold	Signal	5 A	Flash	0.283 in	7.2 mm	Solder	UL94 V-0	Male Pins Plug	Panel Mount Right Angle Through Hole	White	4 (DC C)	D-Sub	Housing/Shell (Unthreaded)	2	37	Steel Yellow Chromate Plated		Brass
MH Connectors 173-E37-211R141	Polyamide (PA6T) Nylon 6T	Gold	Signal	5 A	Flash	0.283 in	7.2 mm	Solder	UL94 V-0	Receptacle Female Sockets	Panel Mount Right Angle Through Hole	White	4 (DC C)	D-Sub	Female Screwlock (4-40) Mating Side	2	37	Steel Yellow Chromate Plated	Mounting Brackets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

173-E37 Series

37 Position D-Sub Receptacle, Female Sockets Connector
