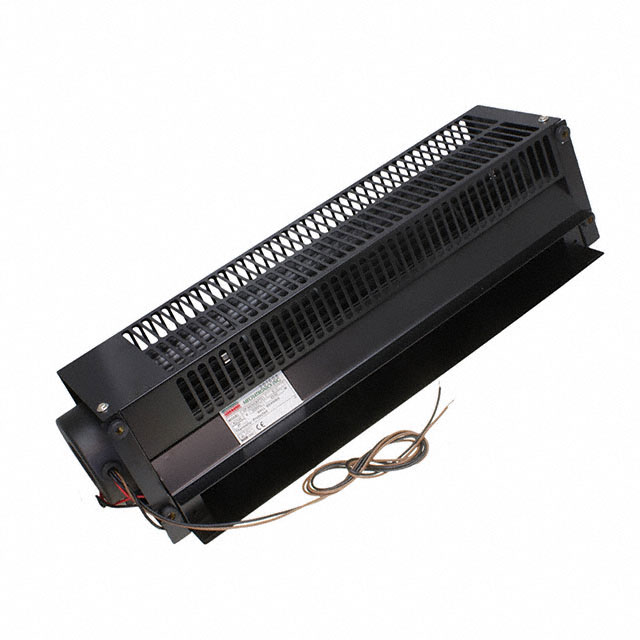

UF9439CBP12H-L
ActiveMechatronics Bearing Group
FAN BLWR CF 120VAC 510X150X130MM
Deep-Dive with AI
Search across all available documentation for this part.
UF9439CBP12H-L
ActiveMechatronics Bearing Group
FAN BLWR CF 120VAC 510X150X130MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UF9439CBP12H-L |
|---|---|
| Air Flow | 318 CFM |
| Air Flow | 8.9 m³/min |
| Approval Agency | CE, TUV |
| Bearing Type | Ball |
| Current Rating (Amps) | 400 mA |
| Fan Type | Blower, Cross Flow |
| Features | Thermal Overload Protector (TOP), Permanent Split Capacitor Motor |
| Material - Blade | Aluminum |
| Material - Frame | Steel |
| Noise | 53 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 50 W |
| RPM | 1600 RPM |
| Size / Dimension [x] | 510 mm |
| Size / Dimension [y] | 130 mm |
| Static Pressure | 44.8 Pa |
| Static Pressure | 0.18 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 120 VAC |
| Weight | 3.5 kg |
| Weight | 7.7 lbs |
| Width [y] | 125 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 118.18 | |
| 10 | $ 105.36 | |||
| 25 | $ 100.65 | |||
| 50 | $ 97.23 | |||
| 100 | $ 93.91 | |||
Description
General part information
UF9439 Series
Fan Blower, Cross Flow 120VAC Rectangular - 510mm L x 130mm H Ball 318.0 CFM (8.90m³/min) 2 Wire Leads
