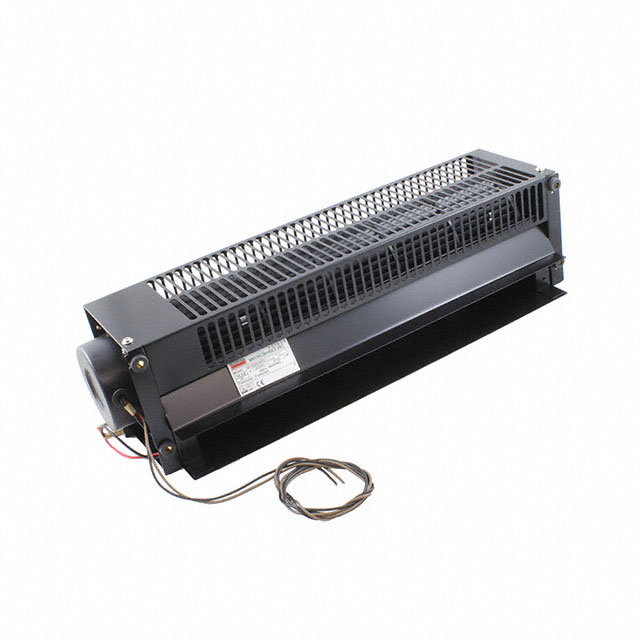

UF9439CBP23H-L

Active

Mechatronics Bearing Group

FAN BLWR CF 230VAC 510X150X130MM

Search across all available documentation for this part.

Active

Mechatronics Bearing Group

FAN BLWR CF 230VAC 510X150X130MM

Technical Specifications

Parameters and characteristics for this part

Specification	UF9439CBP23H-L

Air Flow	318 CFM
Air Flow	8.9 m³/min
Approval Agency	CE, TUV
Bearing Type	Ball
Current Rating (Amps)	0.22 A
Fan Type	Blower, Cross Flow
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor
Material - Blade	Aluminum
Material - Frame	Steel
Noise	53 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	50 W
RPM	1600 RPM
Size / Dimension [x]	510 mm
Size / Dimension [y]	130 mm
Static Pressure	44.8 Pa
Static Pressure	0.18 in H2O
Termination	2 Wire Leads
Voltage - Rated	230 VAC
Weight	3.5 kg
Weight	7.7 lbs
Width [y]	125 mm

Part	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Weight	Weight	Voltage - Rated	Features	Material - Frame	Fan Type	Noise	Width [y]	Termination	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Blade	Static Pressure	Static Pressure	RPM	Current Rating (Amps)	Bearing Type	Power (Watts)	Air Flow	Air Flow
Mechatronics Bearing Group UF9439CBP23H-L	130 mm	510 mm	CE TUV	3.5 kg	7.7 lbs	230 VAC	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	Steel	Blower Cross Flow	53 dB	125 mm	2 Wire Leads	70 °C	70 °C	-40 °C	-40 °C	Aluminum	44.8 Pa	0.18 in H2O	1600 RPM	0.22 A	Ball	50 W	318 CFM	8.9 m³/min
Mechatronics Bearing Group UF9439CBP12H-L	130 mm	510 mm	CE TUV	3.5 kg	7.7 lbs	120 VAC	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	Steel	Blower Cross Flow	53 dB	125 mm	2 Wire Leads	70 °C	70 °C	-40 °C	-40 °C	Aluminum	44.8 Pa	0.18 in H2O	1600 RPM	400 mA	Ball	50 W	318 CFM	8.9 m³/min

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	6	$ 108.08

General part information

Fan Blower, Cross Flow 230VAC Rectangular - 510mm L x 130mm H Ball 318.0 CFM (8.90m³/min) 2 Wire Leads
