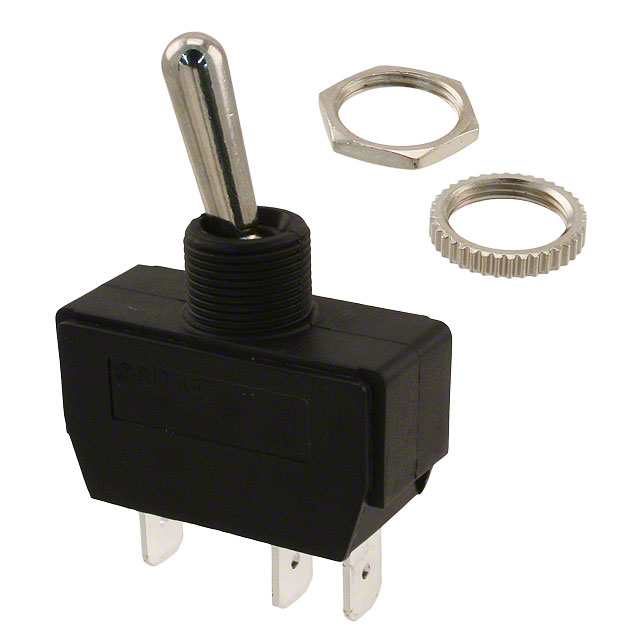

GTS447G101HR
ActiveCW Industries
SWITCH TOGGLE SPDT 16A 277V
Deep-Dive with AI
Search across all available documentation for this part.
GTS447G101HR
ActiveCW Industries
SWITCH TOGGLE SPDT 16A 277V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GTS447G101HR |
|---|---|
| Actuator Length [x] | 17.5 mm |
| Actuator Type | Standard Round |
| Bushing Thread | 15/32-32 |
| Circuit | SPDT |
| Current Rating (Amps) | 16 A |
| Electrical Life | 10000 Cycles |
| Illumination | Non-Illuminated |
| Ingress Protection | IP56 - Dust Protected, Water Resistant |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | 0 °C |
| Panel Cutout Dimensions [diameter] | 12.2 mm |
| Switch Function | Mom-Off-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 277 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.48 | |
| 10 | $ 4.73 | |||
| 25 | $ 4.46 | |||
| 50 | $ 4.27 | |||
| 100 | $ 4.08 | |||
| 250 | $ 3.85 | |||
| 500 | $ 3.68 | |||
| 1000 | $ 3.52 | |||
Description
General part information
GTS447G Series
Toggle Switch SPDT Panel Mount
Documents
Technical documentation and resources
No documents available
