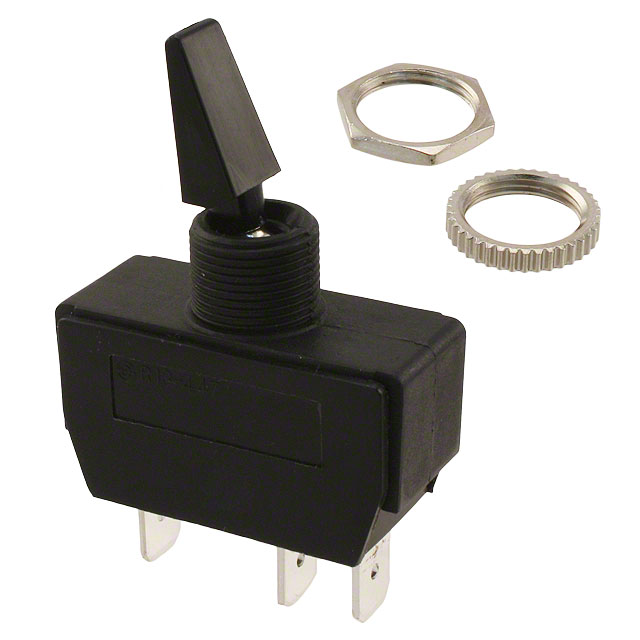

GTS447G301HR

Active

CW Industries

SWITCH TOGGLE SPDT 16A 277V

Search across all available documentation for this part.

Active

CW Industries

SWITCH TOGGLE SPDT 16A 277V

Technical Specifications

Parameters and characteristics for this part

Specification	GTS447G301HR

Actuator Length [x]	17 mm
Actuator Type	Flatted
Bushing Thread	15/32-32
Circuit	SPDT
Current Rating (Amps)	16 A
Electrical Life	10000 Cycles
Illumination	Non-Illuminated
Ingress Protection	IP56 - Dust Protected, Water Resistant
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	Mom-Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	277 V

Part	Illumination	Electrical Life	Panel Cutout Dimensions [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Current Rating (Amps)	Actuator Type	Actuator Length [x]	Switch Function	Ingress Protection	Voltage Rating - AC	Termination Style	Bushing Thread
CW Industries GTS447G101HR	Non-Illuminated	10000 Cycles	12.2 mm	0 °C	85 °C	SPDT	16 A	Standard Round	17.5 mm	Mom-Off-Mom	IP56 - Dust Protected Water Resistant	277 V	Quick Connect - 0.250" (6.3mm)	15/32-32
CW Industries GTS447G301HR	Non-Illuminated	10000 Cycles	12.2 mm	0 °C	85 °C	SPDT	16 A	Flatted	17 mm	Mom-Off-Mom	IP56 - Dust Protected Water Resistant	277 V	Quick Connect - 0.250" (6.3mm)	15/32-32

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Toggle Switch SPDT Panel Mount
