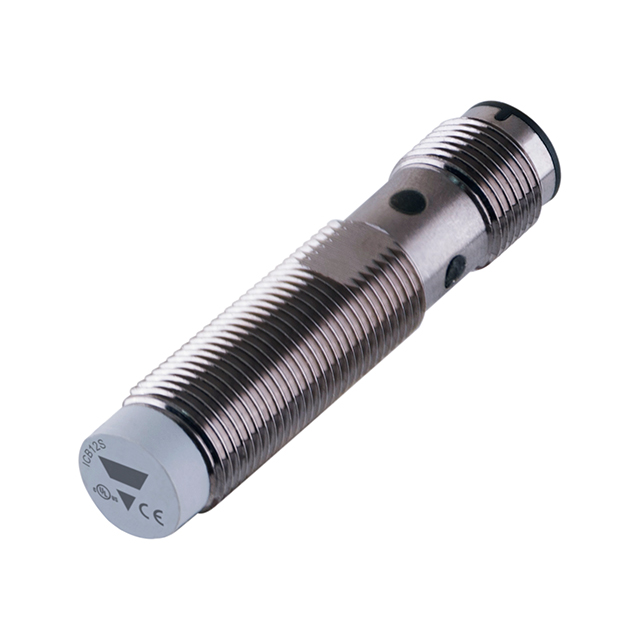

ICB12S30F02NOM1

Active

CARLO GAVAZZI

SENSOR PROX INDUCTIVE 2MM CYLIND

Search across all available documentation for this part.

Active

CARLO GAVAZZI

SENSOR PROX INDUCTIVE 2MM CYLIND

Technical Specifications

Parameters and characteristics for this part

Part	Ingress Protection	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Response Frequency	Sensor Type	Shielding	Output Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Indicator [custom]	Sensing Distance	Sensing Distance	Material - Body
CARLO GAVAZZI ICB12S30N04PC	IP67	Cylinder Threaded - M12	10 VDC	36 V	2 kHz	Inductive	Unshielded	4-Wire PNP-NC	Cable Leads	70 °C	-25 °C	LED	4 mm	0.157 in	Nickel-Plated Brass
CARLO GAVAZZI ICB12S30F06NC	IP67	Cylinder Threaded - M12	10 VDC	36 V	2 kHz	Inductive	Unshielded	NPN-NC 3-Wire	Cable Leads	70 °C	-25 °C	LED	6 mm	0.236 in	Nickel-Plated Brass
CARLO GAVAZZI ICB12S30F02PA	IP67	Cylinder Threaded - M12	10 VDC	36 V	2 kHz	Inductive	Unshielded	4-Wire PNP-NC/NO	Cable Leads	70 °C	-25 °C	LED	2 mm	0.079 in	Nickel-Plated Brass
CARLO GAVAZZI ICB12S30F02NOM1	IP67	Cylinder Threaded - M12	10 VDC	36 V	2 kHz	Inductive	Unshielded	4-Wire NPN-NO	Connector	70 °C	-25 °C	LED	2 mm	0.079 in	Nickel-Plated Brass
CARLO GAVAZZI ICB12S30F04PA	IP67	Cylinder Threaded - M12	10 VDC	36 V	2 kHz	Inductive	Unshielded	4-Wire PNP-NC/NO	Cable Leads	70 °C	-25 °C	LED	4 mm	0.157 in	Nickel-Plated Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SENSOR PROX INDUCTIVE 2MM CYLIND

Technical documentation and resources

No documents available
