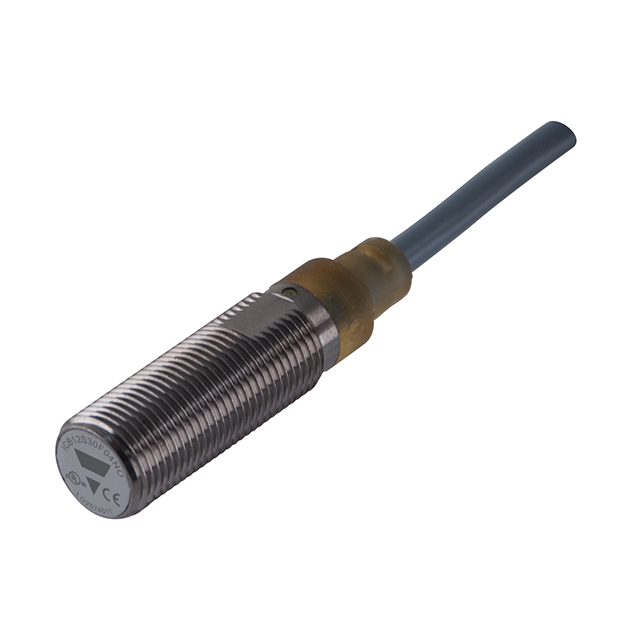

ICB12S30F06NC

Active

CARLO GAVAZZI

SENSOR: INDUCTIVE; OUT: NPN / NC; 0÷6MM; 10÷36VDC; M12; 2M; IP67

Search across all available documentation for this part.

Active

CARLO GAVAZZI

SENSOR: INDUCTIVE; OUT: NPN / NC; 0÷6MM; 10÷36VDC; M12; 2M; IP67

Technical Specifications

Parameters and characteristics for this part

Part	Ingress Protection	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Response Frequency	Sensor Type	Shielding	Output Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Indicator [custom]	Sensing Distance	Sensing Distance	Material - Body
CARLO GAVAZZI ICB12S30N04PC	IP67	Cylinder Threaded - M12	10 VDC	36 V	2 kHz	Inductive	Unshielded	4-Wire PNP-NC	Cable Leads	70 °C	-25 °C	LED	4 mm	0.157 in	Nickel-Plated Brass
CARLO GAVAZZI ICB12S30F06NC	IP67	Cylinder Threaded - M12	10 VDC	36 V	2 kHz	Inductive	Unshielded	NPN-NC 3-Wire	Cable Leads	70 °C	-25 °C	LED	6 mm	0.236 in	Nickel-Plated Brass
CARLO GAVAZZI ICB12S30F02PA	IP67	Cylinder Threaded - M12	10 VDC	36 V	2 kHz	Inductive	Unshielded	4-Wire PNP-NC/NO	Cable Leads	70 °C	-25 °C	LED	2 mm	0.079 in	Nickel-Plated Brass
CARLO GAVAZZI ICB12S30F02NOM1	IP67	Cylinder Threaded - M12	10 VDC	36 V	2 kHz	Inductive	Unshielded	4-Wire NPN-NO	Connector	70 °C	-25 °C	LED	2 mm	0.079 in	Nickel-Plated Brass
CARLO GAVAZZI ICB12S30F04PA	IP67	Cylinder Threaded - M12	10 VDC	36 V	2 kHz	Inductive	Unshielded	4-Wire PNP-NC/NO	Cable Leads	70 °C	-25 °C	LED	4 mm	0.157 in	Nickel-Plated Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SENSOR: INDUCTIVE; OUT: NPN / NC; 0÷6MM; 10÷36VDC; M12; 2M; IP67

Technical documentation and resources

No documents available
