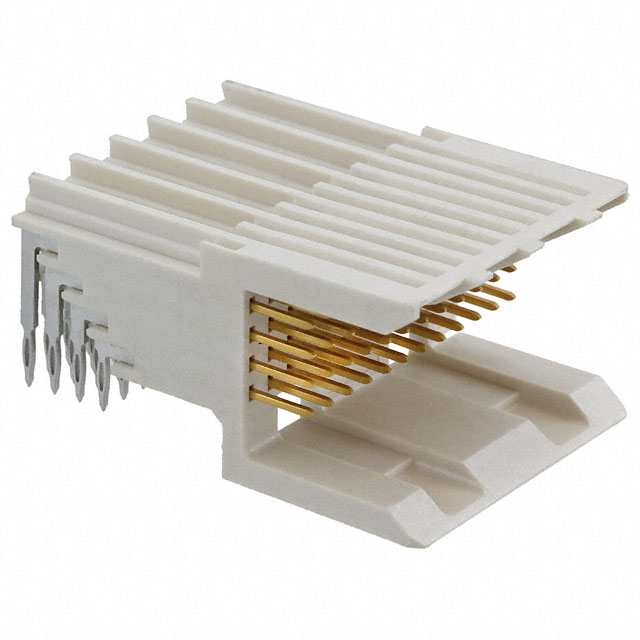

5223514-2
ActiveTE Connectivity Raychem Cable Protection
2MM FB,IS,ASY,048,SIG,HDR,SL
Deep-Dive with AI
Search across all available documentation for this part.
5223514-2
ActiveTE Connectivity Raychem Cable Protection
2MM FB,IS,ASY,048,SIG,HDR,SL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5223514-2 |
|---|---|
| Color | Natural |
| Connector Style | Futurebus |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Features | Board Guide |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Positions | 48 |
| Number of Positions Loaded | All |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Termination | Press-Fit |
| Voltage Rating | 30 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 24 | $ 17.45 | |
| 48 | $ 16.98 | |||
| 72 | $ 16.15 | |||
| 120 | $ 14.57 | |||
| 600 | $ 12.62 | |||
Description
General part information
Z-PACK Future Bus+ Series
High Speed / Modular Connectors VERT HDR ASSY 30 POS 5 ROW SIGNAL MODULE
