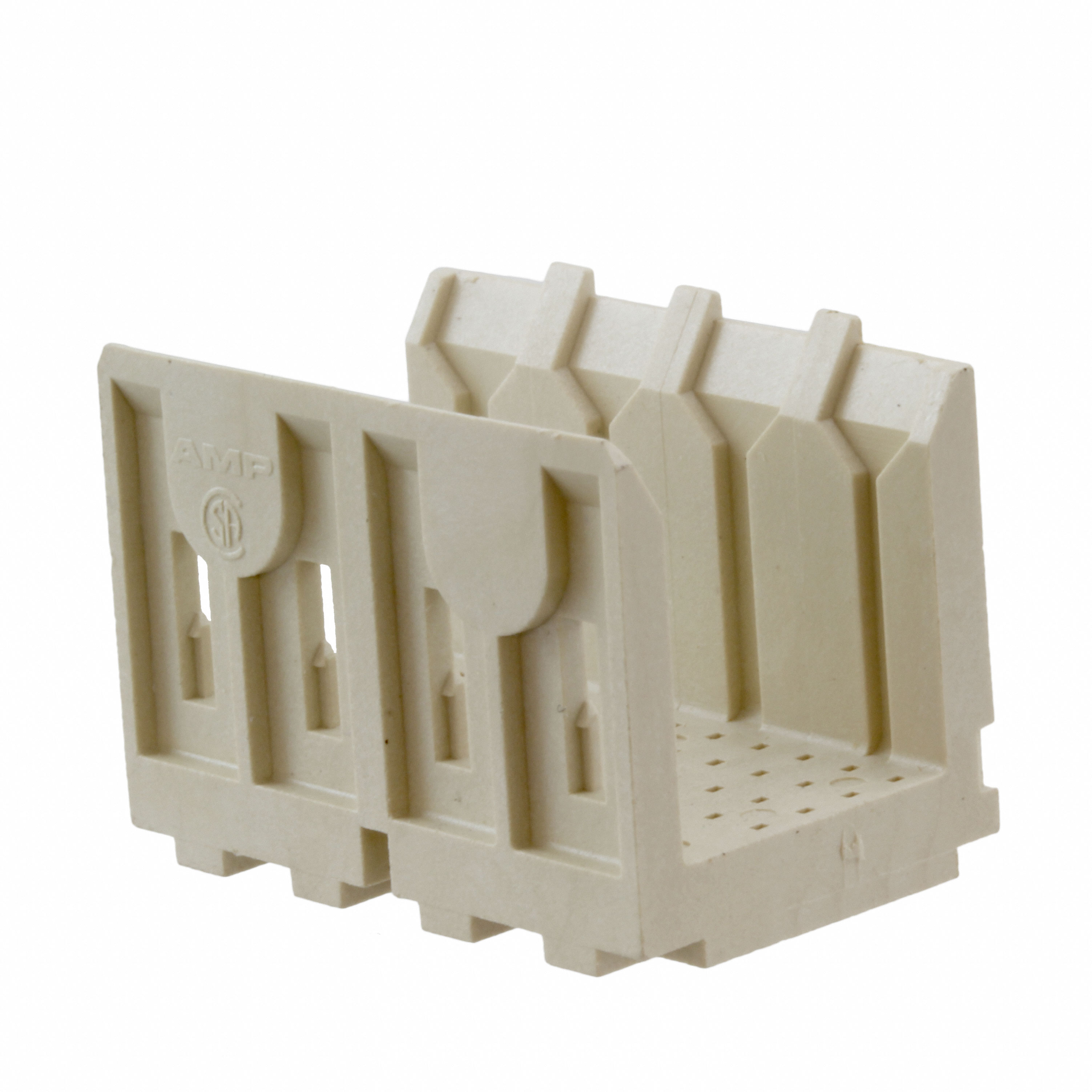

536565-2

Active

TE Connectivity Raychem Cable Protection

2MMFB,SHRD,048,SIG,HDR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

536565-2

Active

TE Connectivity Raychem Cable Protection

2MMFB,SHRD,048,SIG,HDR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	536565-2

Color	Natural
Connector Style	Hard Metric
Connector Type	Shroud for Male Pins
Mounting Type	Through Hole
Note	Contacts Not Included
Number of Positions	48

Z-PACK Future Bus+ Series

High Speed / Modular Connectors VERT HDR ASSY 30 POS 5 ROW SIGNAL MODULE

Part	Mounting Type	Material Flammability Rating	Connector Style	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Termination	Color	Connector Type	Number of Rows	Voltage Rating	Number of Positions	Number of Positions Loaded	Features	Note	Contact Layout, Typical	Contact Finish Thickness
TE Connectivity Raychem Cable Protection 5223016-5	Through Hole	UL94 V-0	Futurebus	0.079 in	2 mm	-55 °C	125 °C	Gold	Press-Fit	Natural	Header Male Pins	5	30 VDC	150	All
TE Connectivity Raychem Cable Protection 5223016-8	Through Hole	UL94 V-0	Futurebus	0.079 in	2 mm	-55 °C	125 °C	Gold	Press-Fit	Natural	Header Male Pins	5	30 VDC	240	All
TE Connectivity Raychem Cable Protection 5223016-1	Through Hole	UL94 V-0	Futurebus	0.079 in	2 mm	-55 °C	125 °C	Gold	Press-Fit	Natural	Header Male Pins	5	30 VDC	30	All
TE Connectivity Raychem Cable Protection 5223514-2	Board Edge Right Angle Through Hole	UL94 V-0	Futurebus	0.079 in	2 mm	-55 °C	125 °C	Gold	Press-Fit	Natural	Header Male Pins		30 VDC	48	All	Board Guide
TE Connectivity Raychem Cable Protection 223041-1	Through Hole		Hard Metric	0.079 in	2 mm					Natural	Shroud for Male Pins	5		30			Contacts Not Included
TE Connectivity Raychem Cable Protection 536565-3	Through Hole		Hard Metric							Natural	Shroud for Male Pins			96			Contacts Not Included
TE Connectivity Raychem Cable Protection 5536676-1	Board Edge Right Angle Through Hole	UL94 V-0	Futurebus	0.236 in	6 mm	-55 °C	125 °C	Gold	Press-Fit		Receptacle Female Blade Sockets	5	30 VDC	10	All	Board Guide Guide Pin		10 Power	Flash
TE Connectivity Raychem Cable Protection 536565-1	Through Hole		Hard Metric							Natural	Shroud for Male Pins			24			Contacts Not Included
TE Connectivity Raychem Cable Protection 5223016-4	Through Hole	UL94 V-0	Futurebus	0.079 in	2 mm	-55 °C	125 °C	Gold	Press-Fit	Natural	Header Male Pins	5	30 VDC	120	All
TE Connectivity Raychem Cable Protection 536565-2	Through Hole		Hard Metric							Natural	Shroud for Male Pins			48			Contacts Not Included

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	2000	$ 2.36
Newark	Each	1000	$ 2.27
		2500	$ 2.14

Description

General part information

Z-PACK Future Bus+ Series

High Speed / Modular Connectors VERT HDR ASSY 30 POS 5 ROW SIGNAL MODULE
