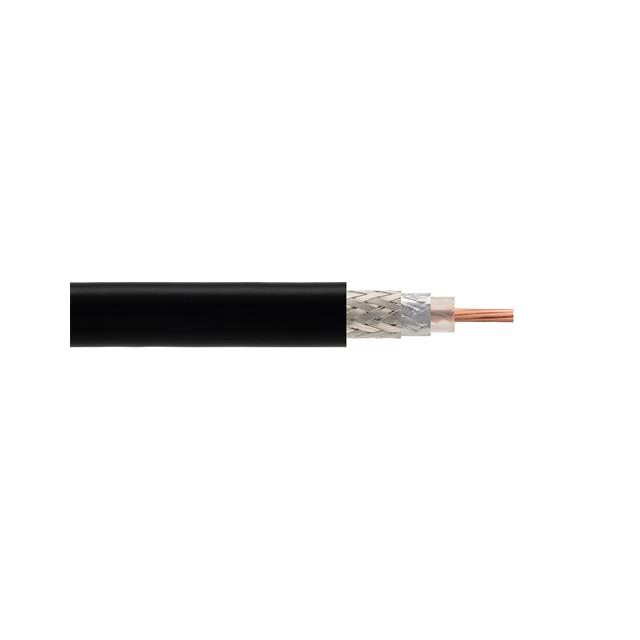

LMR-100A-UF

Active

Amphenol Times Microwave Systems

INDOOR CABLE, BLACK TPE JACKET

Search across all available documentation for this part.

Active

Amphenol Times Microwave Systems

INDOOR CABLE, BLACK TPE JACKET

Technical Specifications

Parameters and characteristics for this part

Specification	LMR-100A-UF

Cable Group	LMR-100
Cable Type	Coaxial
Conductor Material	Steel Covered, Copper, Bare, Steel, Copper Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	1.52 mm
Dielectric Diameter [diameter]	0.06 in
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	2.79 mm
Jacket (Insulation) Diameter [diameter]	0.11 in
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)
Jacket Color	Black
Length [x]	1 ft
Length [x]	300 mm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Material	Copper, Tinned, Aluminum
Shield Type	Braid

Part	Length	Spool Size	Spool Size	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Impedance	Conductor Strand	Features	Jacket Color	Conductor Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Shield Type	Operating Temperature [Max]	Operating Temperature [Min]	Cable Type	Jacket (Insulation) Material	Shield Material	Length [x]	Length [x]	Cable Group
Amphenol Times Microwave Systems LMR-100A-FR	Enter Number of Feet in Order Quantity	500 '	152.4 m	2.79 mm	0.11 in	50 Ohms	Solid	Fire Retardant	Black	Copper Coated Steel	1.52 mm	0.06 in	Braid	85 °C	-40 °C	Coaxial	Polyethylene (PE)	Aluminum Copper Tinned
Amphenol Times Microwave Systems LMR-100A-PUR				2.79 mm	0.11 in	50 Ohms	Solid		Black	Copper Coated Steel	1.52 mm	0.06 in	Braid	85 °C	-40 °C	Coaxial	Polyurethane (PU)	Aluminum Copper Tinned
Amphenol Times Microwave Systems LMR-100A-PVC	Enter Number of Feet in Order Quantity	500 '	152.4 m	2.79 mm	0.11 in	50 Ohms	Solid		Black	Copper Coated Steel	1.52 mm	0.06 in	Braid	85 °C	-40 °C	Coaxial	Poly-Vinyl Chloride (PVC)	Aluminum Copper Tinned
Amphenol Times Microwave Systems LMR-100A-UF				2.79 mm	0.11 in	50 Ohms	Solid		Black	Copper Coated Copper Bare Steel Steel Covered	1.52 mm	0.06 in	Braid	85 °C	-40 °C	Coaxial	Thermoplastic Elastomer (TPE)	Aluminum Copper Tinned	1 ft	300 mm	LMR-100
Amphenol Times Microwave Systems LMR-100A-PVC-W	Enter Number of Feet in Order Quantity	500 '	152.4 m	2.79 mm	0.11 in	50 Ohms	Solid			Copper Coated Steel	1.52 mm	0.06 in	Braid	85 °C	-40 °C	Coaxial	Poly-Vinyl Chloride (PVC)	Aluminum Copper Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Coaxial Cable 50 Ohms
