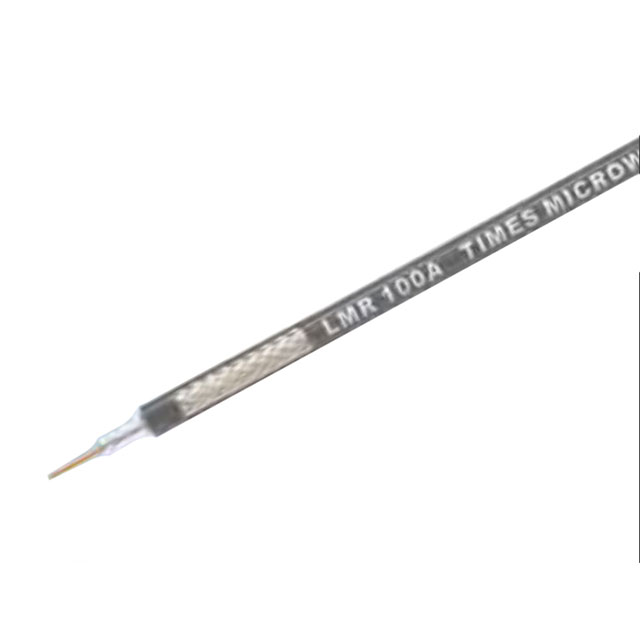

LMR-100A-FR

Active

Amphenol Times Microwave Systems

INDR/OUTDR BLK NON-HALOGEN FOOT

Search across all available documentation for this part.

Active

Amphenol Times Microwave Systems

INDR/OUTDR BLK NON-HALOGEN FOOT

Technical Specifications

Parameters and characteristics for this part

Specification	LMR-100A-FR

Cable Type	Coaxial
Conductor Material	Steel, Copper Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	1.52 mm
Dielectric Diameter [diameter]	0.06 in
Features	Fire Retardant
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	2.79 mm
Jacket (Insulation) Diameter [diameter]	0.11 in
Jacket (Insulation) Material	Polyethylene (PE)
Jacket Color	Black
Length	Enter Number of Feet in Order Quantity
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Material	Copper, Tinned, Aluminum
Shield Type	Braid
Spool Size	500 '
Spool Size	152.4 m

Part	Length	Spool Size	Spool Size	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Impedance	Conductor Strand	Features	Jacket Color	Conductor Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Shield Type	Operating Temperature [Max]	Operating Temperature [Min]	Cable Type	Jacket (Insulation) Material	Shield Material	Length [x]	Length [x]	Cable Group
Amphenol Times Microwave Systems LMR-100A-FR	Enter Number of Feet in Order Quantity	500 '	152.4 m	2.79 mm	0.11 in	50 Ohms	Solid	Fire Retardant	Black	Copper Coated Steel	1.52 mm	0.06 in	Braid	85 °C	-40 °C	Coaxial	Polyethylene (PE)	Aluminum Copper Tinned
Amphenol Times Microwave Systems LMR-100A-PUR				2.79 mm	0.11 in	50 Ohms	Solid		Black	Copper Coated Steel	1.52 mm	0.06 in	Braid	85 °C	-40 °C	Coaxial	Polyurethane (PU)	Aluminum Copper Tinned
Amphenol Times Microwave Systems LMR-100A-PVC	Enter Number of Feet in Order Quantity	500 '	152.4 m	2.79 mm	0.11 in	50 Ohms	Solid		Black	Copper Coated Steel	1.52 mm	0.06 in	Braid	85 °C	-40 °C	Coaxial	Poly-Vinyl Chloride (PVC)	Aluminum Copper Tinned
Amphenol Times Microwave Systems LMR-100A-UF				2.79 mm	0.11 in	50 Ohms	Solid		Black	Copper Coated Copper Bare Steel Steel Covered	1.52 mm	0.06 in	Braid	85 °C	-40 °C	Coaxial	Thermoplastic Elastomer (TPE)	Aluminum Copper Tinned	1 ft	300 mm	LMR-100
Amphenol Times Microwave Systems LMR-100A-PVC-W	Enter Number of Feet in Order Quantity	500 '	152.4 m	2.79 mm	0.11 in	50 Ohms	Solid			Copper Coated Steel	1.52 mm	0.06 in	Braid	85 °C	-40 °C	Coaxial	Poly-Vinyl Chloride (PVC)	Aluminum Copper Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Coaxial Cable Enter Number of Feet in Order Quantity 50 Ohms
