C1176A.41.01
ActivePrysmian Group

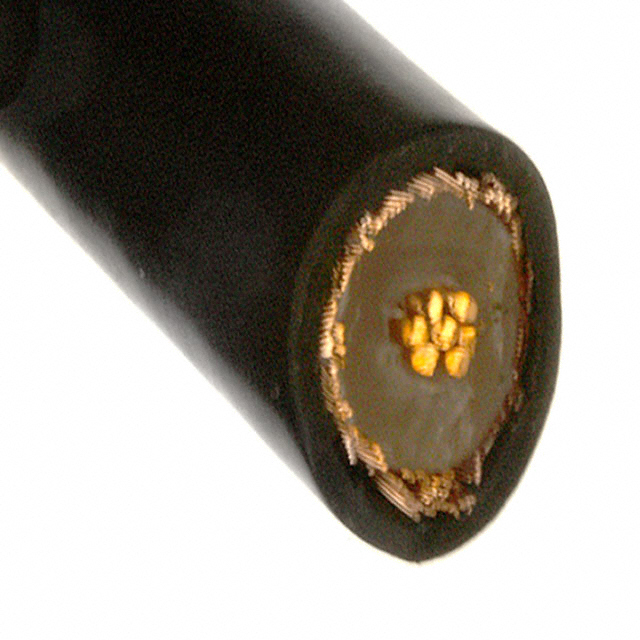

CABLE COAXIAL RG213 13AWG 500'
Deep-Dive with AI
Search across all available documentation for this part.
C1176A.41.01
ActivePrysmian Group
CABLE COAXIAL RG213 13AWG 500'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C1176A.41.01 |
|---|---|
| Cable Group | RG-213 |
| Cable Type | Coaxial |
| Conductor Material | Copper, Bare |
| Conductor Strand | 21 AWG, 7 Strands |
| Dielectric Diameter [diameter] | 7.24 mm |
| Dielectric Diameter [diameter] | 0.285 in |
| Dielectric Material | Solid Polyethylene (PE) |
| Impedance | 50 Ohms |
| Jacket (Insulation) Diameter [diameter] | 10.29 mm |
| Jacket (Insulation) Diameter [diameter] | 0.405 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Length | 304.8 m, 15.24 m, 152.4 m |
| Length | 1000 ft, 50 ft, 6000 in |
| Shield Coverage | 95 % |
| Shield Material | Copper, Bare |
| Shield Type | Braid |
| Usage | RF Signal |
| Wire Gauge | 2.88 mm² |
| Wire Gauge | 13 AWG |
| Wire Gauge | 13 AWG, 2.88 mm˛ |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 645.80 | |
| 2 | $ 613.95 | |||
| 3 | $ 595.92 | |||
| 5 | $ 573.84 | |||
| 7 | $ 559.66 | |||
| 10 | $ 544.93 | |||
| 1000 | $ 0.99 | |||
| 2000 | $ 0.94 | |||
| 3000 | $ 0.91 | |||
| 5000 | $ 0.88 | |||
| 7000 | $ 0.85 | |||
| 10000 | $ 0.83 | |||
| Spool | 1 | $ 79.87 | ||
| 2 | $ 76.02 | |||
| 3 | $ 73.84 | |||
| 5 | $ 71.17 | |||
| 7 | $ 69.46 | |||
| 10 | $ 67.68 | |||
| 25 | $ 63.29 | |||
| 50 | $ 60.12 | |||
| 100 | $ 57.08 | |||
Description
General part information
C1176 Series
Coaxial Cable 13 AWG (2.88mm²) RG-213 500.0' (152.40m) 50 Ohms
Documents
Technical documentation and resources
No documents available
