C1176.44.01

Active

Prysmian Group

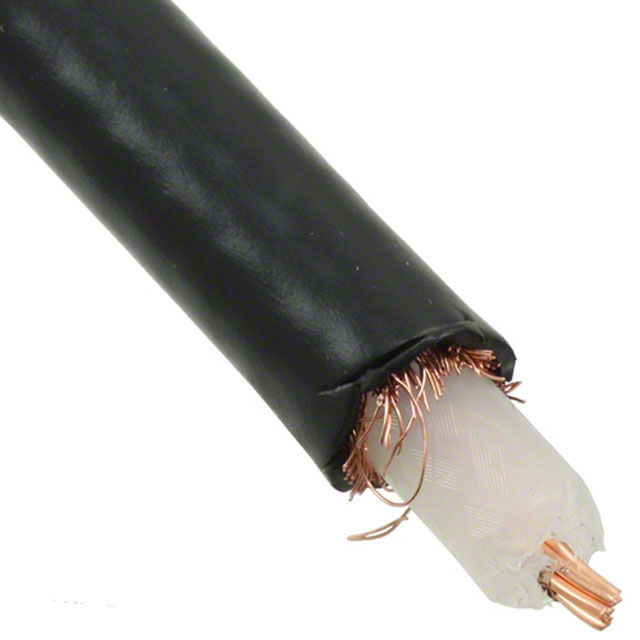

CABLE COAXIAL RG213 13AWG 2500'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE COAXIAL RG213 13AWG 2500'

Technical Specifications

Parameters and characteristics for this part

Specification	C1176.44.01

Cable Group	RG-213
Cable Type	Coaxial
Conductor Material	Copper, Bare
Conductor Strand	21 AWG, 7 Strands
Dielectric Diameter [diameter]	7.24 mm
Dielectric Diameter [diameter]	0.285 in
Dielectric Material	Solid Polyethylene (PE)
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	10.29 mm
Jacket (Insulation) Diameter [diameter]	0.405 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	2500 ft
Length	762 m
Shield Coverage	95 %
Shield Material	Copper, Bare
Shield Type	Braid
Usage	RF Signal
Wire Gauge	2.88 mm²
Wire Gauge	13 AWG

Part	Length	Length	Usage	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Shield Coverage	Length [x]	Length [x]	Impedance	Jacket (Insulation) Material	Shield Type	Shield Material	Cable Group	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Dielectric Material	Wire Gauge	Wire Gauge	Jacket Color	Conductor Material	Conductor Strand	Wire Gauge
Prysmian Group C1176A.38.01	15.24 m 152.4 m	50 ft 6000 in	RF Signal	7.24 mm	0.285 in	95 %	100 ft	30.48 m	50 Ohms	Poly-Vinyl Chloride (PVC)	Braid	Copper Bare	RG-213	10.29 mm	0.405 in	Coaxial	Solid Polyethylene (PE)	2.88 mm²	13 AWG	Black	Copper Bare	7 Strands 21 AWG
Prysmian Group C1176.44.01	762 m	2500 ft	RF Signal	7.24 mm	0.285 in	95 %			50 Ohms	Poly-Vinyl Chloride (PVC)	Braid	Copper Bare	RG-213	10.29 mm	0.405 in	Coaxial	Solid Polyethylene (PE)	2.88 mm²	13 AWG	Black	Copper Bare	7 Strands 21 AWG
Prysmian Group C1176A.41.01	15.24 m 152.4 m 304.8 m	50 ft 1000 ft 6000 in	RF Signal	7.24 mm	0.285 in	95 %			50 Ohms	Poly-Vinyl Chloride (PVC)	Braid	Copper Bare	RG-213	10.29 mm	0.405 in	Coaxial	Solid Polyethylene (PE)	2.88 mm²	13 AWG	Black	Copper Bare	7 Strands 21 AWG	2.88 mm˛ 13 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Coaxial Cable 13 AWG (2.88mm²) RG-213 2500.0' (762.00m) 50 Ohms
