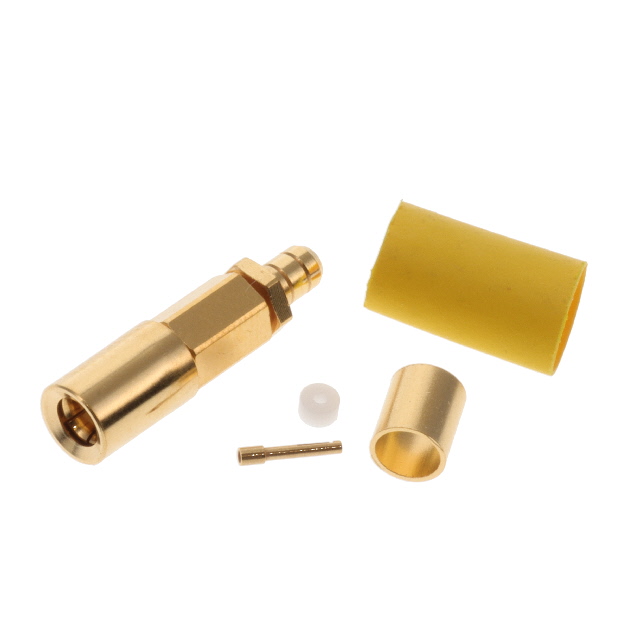

7202-1572-108
ActiveRadiall USA, Inc.
SSMB F STR NA CR 2.6/50D
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7202-1572-108
ActiveRadiall USA, Inc.
SSMB F STR NA CR 2.6/50D
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7202-1572-108 |
|---|---|
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Cable Group | RD-316 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SSMB |
| Connector Type | Plug, Female Socket |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 12.4 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 27.26 | |
| 10 | $ 21.03 | |||
| 25 | $ 19.05 | |||
| 50 | $ 17.71 | |||
| 100 | $ 16.50 | |||
| 250 | $ 15.07 | |||
| 500 | $ 14.10 | |||
Description
General part information
7202-1572 Series
SSMB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
