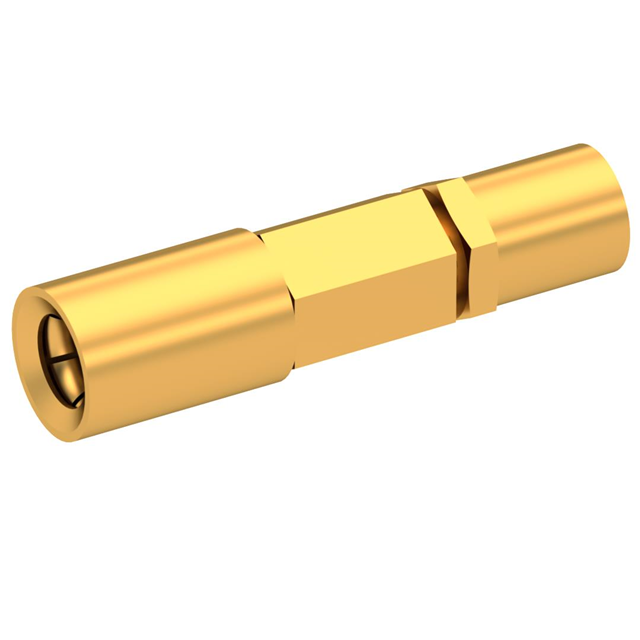

7202-1572-003

Active

Radiall USA, Inc.

SSMB F STR NA CR 2.6/50S

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SSMB F STR NA CR 2.6/50S

Technical Specifications

Parameters and characteristics for this part

Specification	7202-1572-003

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	179, RG-174, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMB
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Contact Termination	Frequency - Max [Max]	Impedance	Number of Ports	Connector Type	Cable Group	Mounting Type	Mating Cycles	Shield Termination	Center Contact Material	Body Material	Center Contact Plating	Body Finish	Dielectric Material	Housing Color	Connector Style	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Cable Group
Radiall USA, Inc. 7202-1572-003	Crimp	12.4 GHz	50 Ohms	1	Female Socket Plug	179 316 RG-174	Free Hanging (In-Line)	500	Crimp	Beryllium Copper	Beryllium Copper	Gold	Gold	Polytetrafluoroethylene (PTFE)	Gold	SSMB	250 VDC	-65 ░C	165 °C	Snap-On
Radiall USA, Inc. 7202-1572-108	Crimp	12.4 GHz	50 Ohms	1	Female Socket Plug	RD-316	Free Hanging (In-Line)	500	Crimp	Beryllium Copper	Beryllium Copper	Gold	Gold	Polytetrafluoroethylene (PTFE)	Gold	SSMB	250 VDC	-65 ░C	165 °C	Snap-On
Radiall USA, Inc. 7202-1572-002	Crimp	12.4 GHz	50 Ohms	1	Female Socket Plug	RG-178	Free Hanging (In-Line)	500	Crimp	Beryllium Copper	Beryllium Copper	Gold	Gold	Polytetrafluoroethylene (PTFE)	Gold	SSMB	250 VDC	-65 ░C	165 °C	Snap-On	196

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SSMB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
