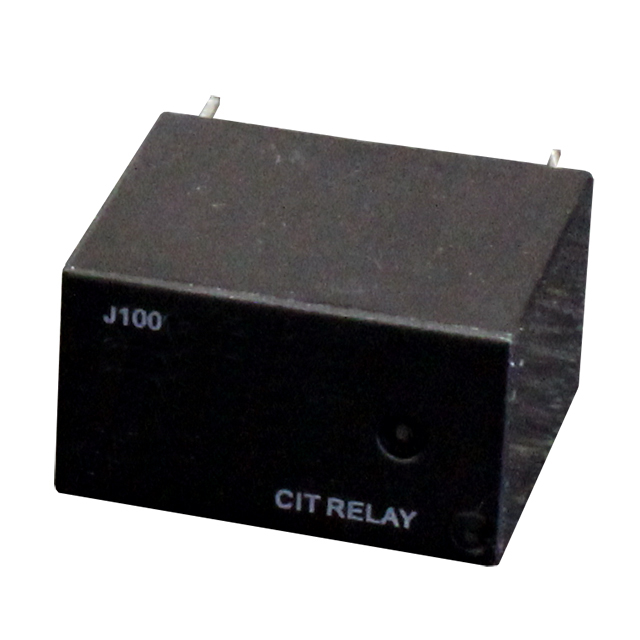

J1001AS18VDC.45

Active

CIT Relay and Switch

277V@AC 18V 10A ONE NORMALLY OPEN: 1A (SPST-NO) PLUGIN POWER RELAYS ROHS

Search across all available documentation for this part.

Active

CIT Relay and Switch

277V@AC 18V 10A ONE NORMALLY OPEN: 1A (SPST-NO) PLUGIN POWER RELAYS ROHS

Technical Specifications

Parameters and characteristics for this part

Part	Contact Material	Coil Resistance	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Must Release Voltage	Contact Rating (Current)	Must Operate Voltage	Operate Time	Switching Voltage [Max]	Relay Type	Seal Rating	Coil Type	Coil Current	Load - Max Switching [Max]	Release Time	Coil Voltage	Contact Form	Mounting Type
CIT Relay and Switch J1001AS18VDC.20	Silver Tin Oxide (AgSnO)	1.62 kOhms	PC Pin	85 °C	-55 °C	1.8 VDC	10 A	13.5 VDC	10 ms	277 VAC	General Purpose	Sealed - Fully	Non Latching	11.1 mA	2770 VA	10 ms	18 VDC	SPST-NO (1 Form A)	Through Hole
CIT Relay and Switch J1001AS18VDC.45	Silver Tin Oxide (AgSnO)	720 Ohms	PC Pin	85 °C	-55 °C	1.8 VDC	10 A	13.5 VDC	10 ms	277 VAC	General Purpose	Sealed - Fully	Non Latching		2770 VA	10 ms	18 VDC	SPST-NO (1 Form A)	Through Hole
CIT Relay and Switch J1001AS12VDC.20	Silver Tin Oxide (AgSnO)	720 Ohms	PC Pin	85 °C	-55 °C	1.2 VDC	10 A	9 VDC	10 ms	277 VAC	General Purpose	Sealed - Fully	Non Latching	16.7 mA	2770 VA	10 ms	12 VDC	SPST-NO (1 Form A)	Through Hole
CIT Relay and Switch J1001AS12VDC.45	Silver Tin Oxide (AgSnO)	320 Ohms	PC Pin	85 °C	-55 °C	1.2 VDC	10 A	9 VDC	10 ms	277 VAC	General Purpose	Sealed - Fully	Non Latching	37.5 mA	2770 VA	10 ms	12 VDC	SPST-NO (1 Form A)	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPST-NO (1 Form A) 18VDC Coil Through Hole
