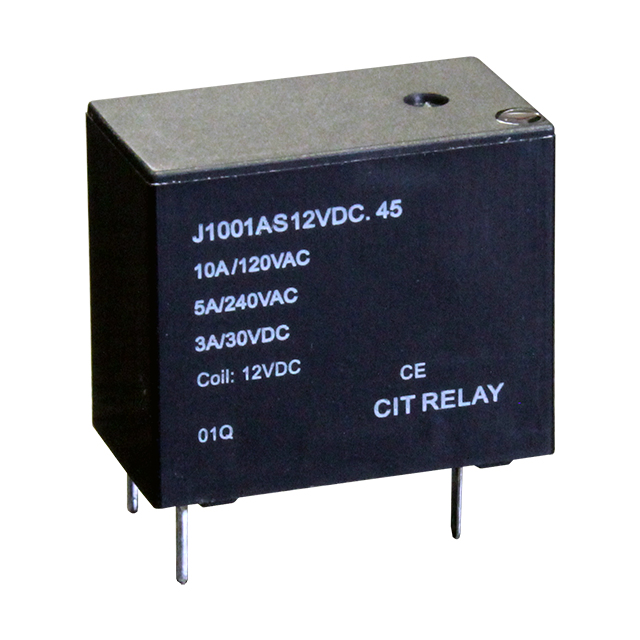

J1001AS12VDC.45

Active

CIT Relay and Switch

RELAY GEN PURPOSE SPST 10A 12V

Search across all available documentation for this part.

Active

CIT Relay and Switch

RELAY GEN PURPOSE SPST 10A 12V

Technical Specifications

Parameters and characteristics for this part

Part	Contact Material	Coil Resistance	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Must Release Voltage	Contact Rating (Current)	Must Operate Voltage	Operate Time	Switching Voltage [Max]	Relay Type	Seal Rating	Coil Type	Coil Current	Load - Max Switching [Max]	Release Time	Coil Voltage	Contact Form	Mounting Type
CIT Relay and Switch J1001AS18VDC.20	Silver Tin Oxide (AgSnO)	1.62 kOhms	PC Pin	85 °C	-55 °C	1.8 VDC	10 A	13.5 VDC	10 ms	277 VAC	General Purpose	Sealed - Fully	Non Latching	11.1 mA	2770 VA	10 ms	18 VDC	SPST-NO (1 Form A)	Through Hole
CIT Relay and Switch J1001AS18VDC.45	Silver Tin Oxide (AgSnO)	720 Ohms	PC Pin	85 °C	-55 °C	1.8 VDC	10 A	13.5 VDC	10 ms	277 VAC	General Purpose	Sealed - Fully	Non Latching		2770 VA	10 ms	18 VDC	SPST-NO (1 Form A)	Through Hole
CIT Relay and Switch J1001AS12VDC.20	Silver Tin Oxide (AgSnO)	720 Ohms	PC Pin	85 °C	-55 °C	1.2 VDC	10 A	9 VDC	10 ms	277 VAC	General Purpose	Sealed - Fully	Non Latching	16.7 mA	2770 VA	10 ms	12 VDC	SPST-NO (1 Form A)	Through Hole
CIT Relay and Switch J1001AS12VDC.45	Silver Tin Oxide (AgSnO)	320 Ohms	PC Pin	85 °C	-55 °C	1.2 VDC	10 A	9 VDC	10 ms	277 VAC	General Purpose	Sealed - Fully	Non Latching	37.5 mA	2770 VA	10 ms	12 VDC	SPST-NO (1 Form A)	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2000	$ 0.59

General part information

General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
